Home / Products / Filters / Common Mode Chokes / EV20-0.3-02-33M

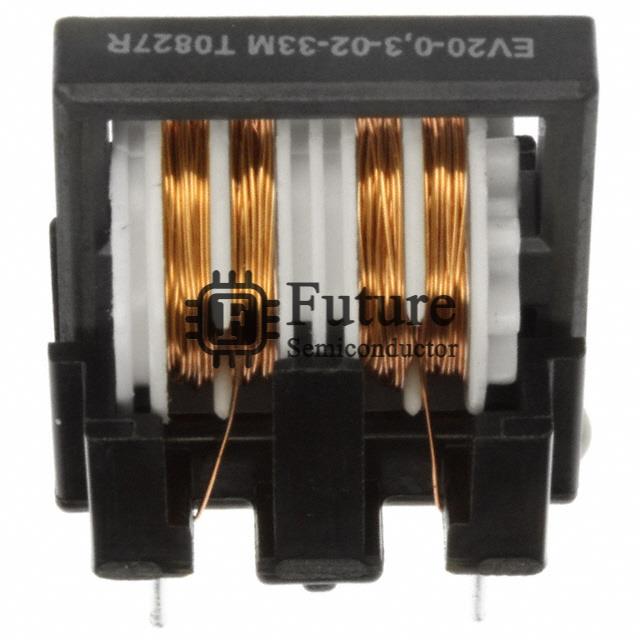

Schaffner EMC Inc. EV20-0.3-02-33M
- MFG Part Number
- EV20-0.3-02-33M
- Available Quantity
- 35810 Pieces
- Reference Price
- USD 1.688
- Our Price
- We have a big discount, please contact us
- Shipping Date
- We can ship out today
- Manufacturer
- Schaffner EMC Inc.
- Brief Description
- EV CMC 33MH 300MA 2LN TH
- Lead Free Status / RoHS Status
- RoHS Compliant (Lead Free)
- Moisture Sensitivity Level (MSL)
- 1 (Unlimited)
- Date Code (D/C)
- New
- Product Category
- Common Mode Chokes
- Stock Resource
- Franchised Distributor
- Warranty
- 360 days quality guarantee
- Datasheet
- EV20-0.3-02-33M.pdf
EV20-0.3-02-33M Specifications
| Manufacturer Part Number | EV20-0.3-02-33M |
|---|---|
| Future Part Number | FT-EV20-0.3-02-33M |
| SPQ / MOQ | Contact Us |
| Packing Material | Reel/Tray/Tube/Others |
| Series | EV |
| EV20-0.3-02-33M Status (Lifecycle) | In Stock |
| Part Status | Active |
| Filter Type | Power Line |
| Number of Lines | 2 |
| Impedance @ Frequency | - |
| Inductance @ Frequency | 33mH @ 10kHz |
| Current Rating (Max) | 300mA |
| DC Resistance (DCR) (Max) | 1.78 Ohm (Typ) |
| Voltage Rating - DC | - |
| Voltage Rating - AC | 250V |
| Operating Temperature | -25°C ~ 100°C |
| Ratings | - |
| Approvals | - |
| Features | - |
| Mounting Type | Through Hole |
| Size / Dimension | 0.827" L x 0.630" W (21.00mm x 16.00mm) |
| Height (Max) | 1.024" (26.00mm) |
| Package / Case | Vertical, 4 PC Pin |
| Country of Origin | USA/JAPAN/MALAYSIA/MEXICO/CN |
| EV20-0.3-02-33M Weight | Contact Us |
| Replacement Part Number | EV20-0.3-02-33M-FT |
