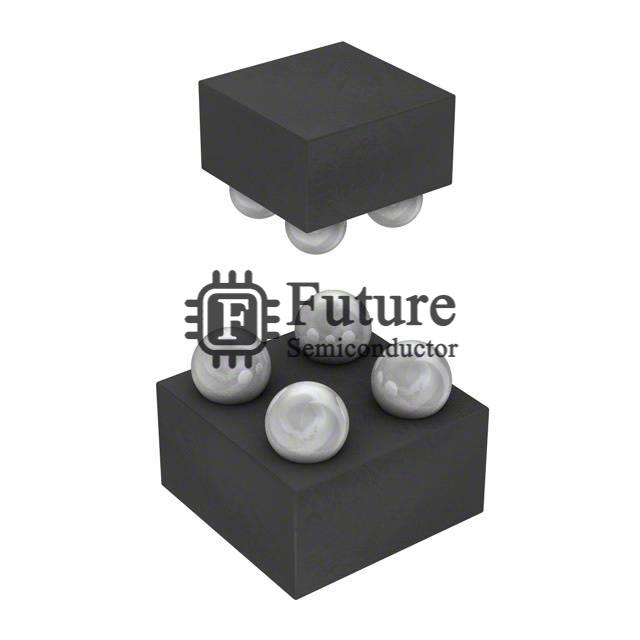

ON Semiconductor ESD7383NCTBG

Name: ESD7383NCTBG
Brand: ON Semiconductor
SKU: ESD7383NCTBG
Price: 0.132128 USD
Availability: InStock
Rating: 4.9 (410 reviews)

MFG Part Number: ESD7383NCTBG

Available Quantity: 82580 Pieces

Reference Price: USD 0.132128

Our Price: We have a big discount, please contact us

Shipping Date: We can ship out today

Manufacturer: ON Semiconductor

Brief Description: - TVS DIODE 3V 10V 4WLCSP

Lead Free Status / RoHS Status: RoHS Compliant (Lead Free)

Moisture Sensitivity Level (MSL): 1 (Unlimited)

Date Code (D/C): New

Product Category: TVS - Diodes

Stock Resource: Franchised Distributor

Warranty: 360 days quality guarantee

Datasheet: ESD7383NCTBG.pdf

ESD7383NCTBG Specifications

Manufacturer Part Number	ESD7383NCTBG
Future Part Number	FT-ESD7383NCTBG
SPQ / MOQ	Contact Us
Packing Material	Reel/Tray/Tube/Others
Series	-
ESD7383NCTBG Status (Lifecycle)	In Stock
Part Status	Active
Type	Steering (Rail to Rail)
Unidirectional Channels	3
Bidirectional Channels	-
Voltage - Reverse Standoff (Typ)	3V
Voltage - Breakdown (Min)	6V
Voltage - Clamping (Max) @ Ipp	10V
Current - Peak Pulse (10/1000µs)	2.5A (8/20µs)
Power - Peak Pulse	50W
Power Line Protection	Yes
Applications	USB OTG
Capacitance @ Frequency	-
Operating Temperature	-40°C ~ 85°C (TJ)
Mounting Type	Surface Mount
Package / Case	4-XFBGA, WLCSP
Supplier Device Package	4-WLCSP (0.8x0.8)
Country of Origin	USA/JAPAN/MALAYSIA/MEXICO/CN
ESD7383NCTBG Weight	Contact Us
Replacement Part Number	ESD7383NCTBG-FT
