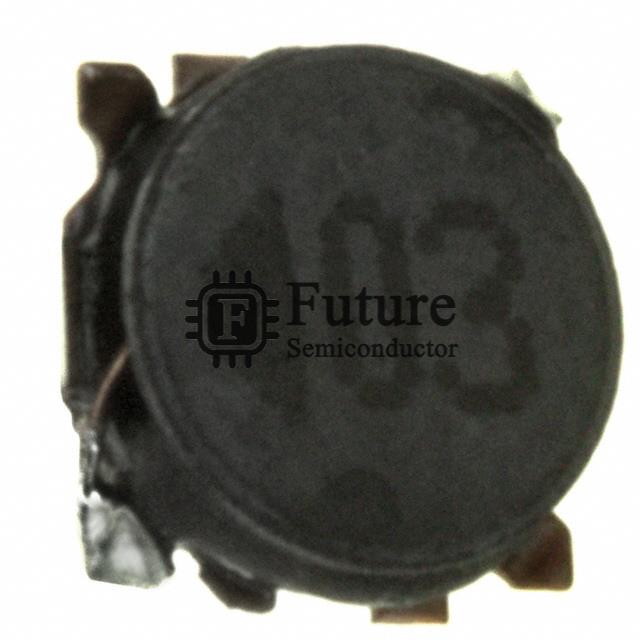

Panasonic Electronic Components ELL-4GG100M

Name: ELL-4GG100M
Brand: Panasonic Electronic Components
SKU: ELL-4GG100M
Price: 0.18564 USD
Availability: InStock
Rating: 4.8 (18 reviews)

MFG Part Number: ELL-4GG100M

Available Quantity: 47360 Pieces

Reference Price: USD 0.18564

Our Price: We have a big discount, please contact us

Shipping Date: We can ship out today

Manufacturer: Panasonic Electronic Components

Brief Description: G FIXED Inductors 10UH 770MA 250 MOHM

Lead Free Status / RoHS Status: RoHS Compliant (Lead Free)

Moisture Sensitivity Level (MSL): 1 (Unlimited)

Date Code (D/C): New

Product Category: Fixed Inductors

Stock Resource: Franchised Distributor

Warranty: 360 days quality guarantee

Datasheet: ELL-4GG100M.pdf

Request Quotation for ELL-4GG100M

Company Name

Contact Person

Phone Number

Address

Email

Message

ELL-4GG100M Specifications

Manufacturer Part Number	ELL-4GG100M
Future Part Number	FT-ELL-4GG100M
SPQ / MOQ	Contact Us
Packing Material	Reel/Tray/Tube/Others
Series	G
ELL-4GG100M Status (Lifecycle)	In Stock
Part Status	Not For New Designs
Type	Wirewound
Material - Core	-
Inductance	10µH
Tolerance	±20%
Current Rating	770mA
Current - Saturation	900mA
Shielding	Shielded
DC Resistance (DCR)	250 mOhm
Q @ Freq	-
Frequency - Self Resonant	-
Ratings	-
Operating Temperature	-
Inductance Frequency - Test	100kHz
Features	-
Mounting Type	Surface Mount
Package / Case	Nonstandard
Supplier Device Package	-
Size / Dimension	0.150" L x 0.150" W (3.80mm x 3.80mm)
Height - Seated (Max)	0.055" (1.40mm)
Country of Origin	USA/JAPAN/MALAYSIA/MEXICO/CN
ELL-4GG100M Weight	Contact Us
Replacement Part Number	ELL-4GG100M-FT
