Home / Products / Power Supplies - Board Mount / DC DC Converters / EHD-RD3470

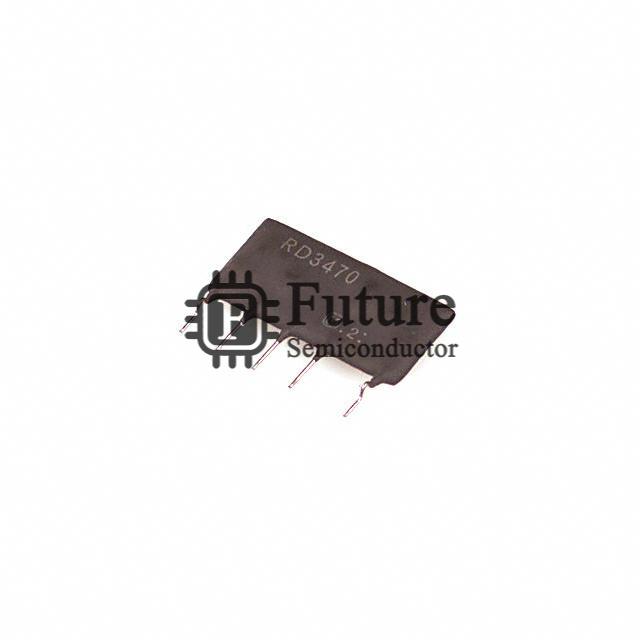

Panasonic Electronic Components EHD-RD3470
- MFG Part Number
- EHD-RD3470
- Available Quantity
- 49980 Pieces
- Reference Price
- USD 3.52
- Our Price
- We have a big discount, please contact us
- Shipping Date
- We can ship out today
- Manufacturer
- Panasonic Electronic Components
- Brief Description
- EHD-RD DC DC CONVERTER -32V 3W
- Lead Free Status / RoHS Status
- RoHS Compliant (Lead Free)
- Moisture Sensitivity Level (MSL)
- 1 (Unlimited)
- Date Code (D/C)
- New
- Product Category
- DC DC Converters
- Stock Resource
- Franchised Distributor
- Warranty
- 360 days quality guarantee
- Datasheet
- EHD-RD3470.pdf
EHD-RD3470 Specifications
| Manufacturer Part Number | EHD-RD3470 |
|---|---|
| Future Part Number | FT-EHD-RD3470 |
| SPQ / MOQ | Contact Us |
| Packing Material | Reel/Tray/Tube/Others |
| Series | EHD-RD |
| EHD-RD3470 Status (Lifecycle) | In Stock |
| Part Status | Obsolete |
| Type | Non-Isolated PoL Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | -113V |
| Voltage - Input (Max) | -170V |
| Voltage - Output 1 | -32V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 100mA |
| Power (Watts) | 3W |
| Voltage - Isolation | - |
| Applications | ITE (Commercial) |
| Features | - |
| Operating Temperature | -25°C ~ 80°C |
| Efficiency | 78% |
| Mounting Type | Through Hole |
| Package / Case | 10-SIP Module, 5 Leads |
| Size / Dimension | 1.11" L x 0.31" W x 0.70" H (28.2mm x 8.0mm x 17.9mm) |
| Supplier Device Package | - |
| Control Features | - |
| Country of Origin | USA/JAPAN/MALAYSIA/MEXICO/CN |
| EHD-RD3470 Weight | Contact Us |
| Replacement Part Number | EHD-RD3470-FT |
