Home / Products / Filters / Common Mode Chokes / EH28-4.0-02-2M3

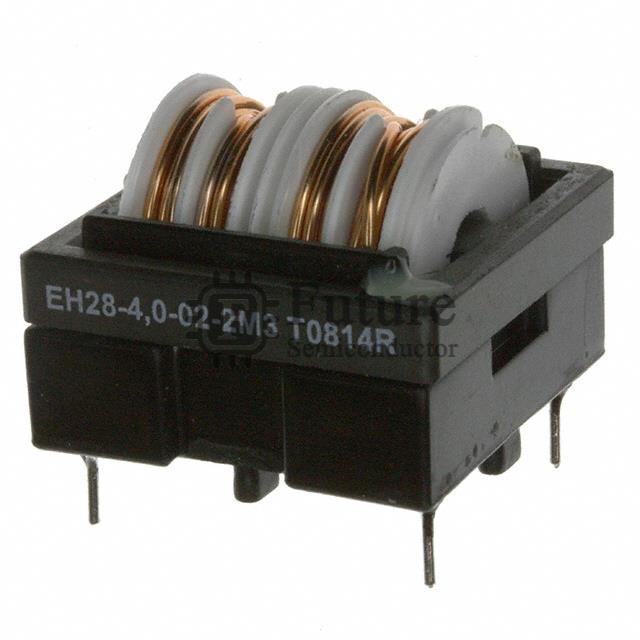

EH28-4.0-02-2M3 Image

Schaffner EMC Inc. EH28-4.0-02-2M3

MFG Part Number
EH28-4.0-02-2M3
Available Quantity
10140 Pieces
Reference Price
USD 2.488
Our Price
We have a big discount, please contact us
Shipping Date
We can ship out today
Manufacturer
Schaffner EMC Inc.
Brief Description
EH CMC 2.3MH 4A 2LN TH
Lead Free Status / RoHS Status
RoHS Compliant (Lead Free)
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Date Code (D/C)
New
Product Category
Common Mode Chokes
Stock Resource
Franchised Distributor
Warranty
360 days quality guarantee
Datasheet
EH28-4.0-02-2M3.pdf
EH28-4.0-02-2M3 Image

Request Quotation for EH28-4.0-02-2M3

Company Name
Contact Person
Phone Number
Address
Email
Message

EH28-4.0-02-2M3 Specifications

Manufacturer Part Number EH28-4.0-02-2M3
Future Part Number FT-EH28-4.0-02-2M3
SPQ / MOQ Contact Us
Packing Material Reel/Tray/Tube/Others
Series EH
EH28-4.0-02-2M3 Status (Lifecycle) In Stock
Part Status Active
Filter Type Power Line
Number of Lines 2
Impedance @ Frequency -
Inductance @ Frequency 2.3mH @ 10kHz
Current Rating (Max) 4A
DC Resistance (DCR) (Max) 40 mOhm (Typ)
Voltage Rating - DC -
Voltage Rating - AC 250V
Operating Temperature -25°C ~ 100°C
Ratings -
Approvals -
Features -
Mounting Type Through Hole
Size / Dimension 1.102" L x 1.102" W (28.00mm x 28.00mm)
Height (Max) 0.941" (23.90mm)
Package / Case Horizontal, 4 PC Pin
Country of Origin USA/JAPAN/MALAYSIA/MEXICO/CN
EH28-4.0-02-2M3 Weight Contact Us
Replacement Part Number EH28-4.0-02-2M3-FT
