Home / Products / Power Supplies - Board Mount / DC DC Converters / EC9BW-24S05N

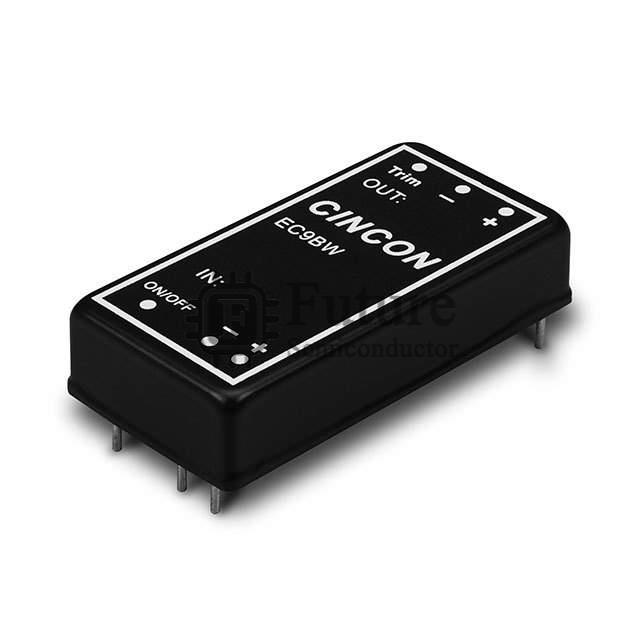

Cincon Electronics Co. LTD EC9BW-24S05N
- MFG Part Number
- EC9BW-24S05N
- Available Quantity
- 41720 Pieces
- Reference Price
- USD 29.612664
- Our Price
- We have a big discount, please contact us
- Shipping Date
- We can ship out today
- Manufacturer
- Cincon Electronics Co. LTD
- Brief Description
- EC9BW (30W) ISOLATED DC/DC CONVERTERS 49.5-6
- Lead Free Status / RoHS Status
- RoHS Compliant (Lead Free)
- Moisture Sensitivity Level (MSL)
- 1 (Unlimited)
- Date Code (D/C)
- New
- Product Category
- DC DC Converters
- Stock Resource
- Franchised Distributor
- Warranty
- 360 days quality guarantee
- Datasheet
- EC9BW-24S05N.pdf
EC9BW-24S05N Specifications
| Manufacturer Part Number | EC9BW-24S05N |
|---|---|
| Future Part Number | FT-EC9BW-24S05N |
| SPQ / MOQ | Contact Us |
| Packing Material | Reel/Tray/Tube/Others |
| Series | EC9BW (30W) |
| EC9BW-24S05N Status (Lifecycle) | In Stock |
| Part Status | Active |
| Type | Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 9V |
| Voltage - Input (Max) | 36V |
| Voltage - Output 1 | 5V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 6A |
| Power (Watts) | 30W |
| Voltage - Isolation | 1.5kV |
| Applications | ITE (Commercial) |
| Features | Remote On/Off, OCP, OTP, OVP, SCP, UVLO |
| Operating Temperature | -40°C ~ 85°C (With Derating) |
| Efficiency | 89.5% |
| Mounting Type | Through Hole |
| Package / Case | 6-DIP Module |
| Size / Dimension | 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm) |
| Supplier Device Package | - |
| Control Features | Enable, Active Low |
| Country of Origin | USA/JAPAN/MALAYSIA/MEXICO/CN |
| EC9BW-24S05N Weight | Contact Us |
| Replacement Part Number | EC9BW-24S05N-FT |
