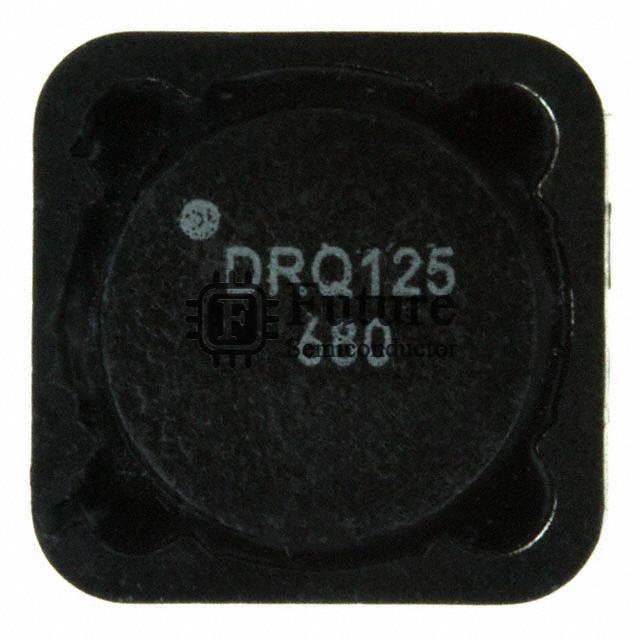

Eaton - Electronics Division DRQ125-680-R

Name: DRQ125-680-R
Brand: Eaton - Electronics Division
SKU: DRQ125-680-R
Price: 0.79424 USD
Availability: InStock
Rating: 4.6 (762 reviews)

MFG Part Number: DRQ125-680-R

Available Quantity: 89580 Pieces

Reference Price: USD 0.79424

Our Price: We have a big discount, please contact us

Shipping Date: We can ship out today

Manufacturer: Eaton - Electronics Division

Brief Description: DRQ INDUCT ARRAY 2 COIL 67.91UH SMD

Lead Free Status / RoHS Status: RoHS Compliant (Lead Free)

Moisture Sensitivity Level (MSL): 1 (Unlimited)

Date Code (D/C): New

Product Category: Arrays, Signal Transformers

Stock Resource: Franchised Distributor

Warranty: 360 days quality guarantee

Datasheet: DRQ125-680-R.pdf

Request Quotation for DRQ125-680-R

Company Name

Contact Person

Phone Number

Address

Email

Message

DRQ125-680-R Specifications

Manufacturer Part Number	DRQ125-680-R
Future Part Number	FT-DRQ125-680-R
SPQ / MOQ	Contact Us
Packing Material	Reel/Tray/Tube/Others
Series	DRQ
DRQ125-680-R Status (Lifecycle)	In Stock
Part Status	Active
Number of Coils	2
Inductance - Connected In Parallel	67.91µH
Inductance - Connected In Series	271.6µH
Tolerance	±20%
Current Rating - Parallel	2.22A
Current Rating - Series	1.11A
Current Saturation - Parallel	2.7A
Current Saturation - Series	1.35A
DC Resistance (DCR) - Parallel	101 mOhm
DC Resistance (DCR) - Series	440 mOhm
Shielding	Shielded
Ratings	-
Operating Temperature	-40°C ~ 125°C
Mounting Type	Surface Mount
Package / Case	Nonstandard
Size / Dimension	0.492" L x 0.492" W (12.50mm x 12.50mm)
Height	0.236" (6.00mm)
Country of Origin	USA/JAPAN/MALAYSIA/MEXICO/CN
DRQ125-680-R Weight	Contact Us
Replacement Part Number	DRQ125-680-R-FT
