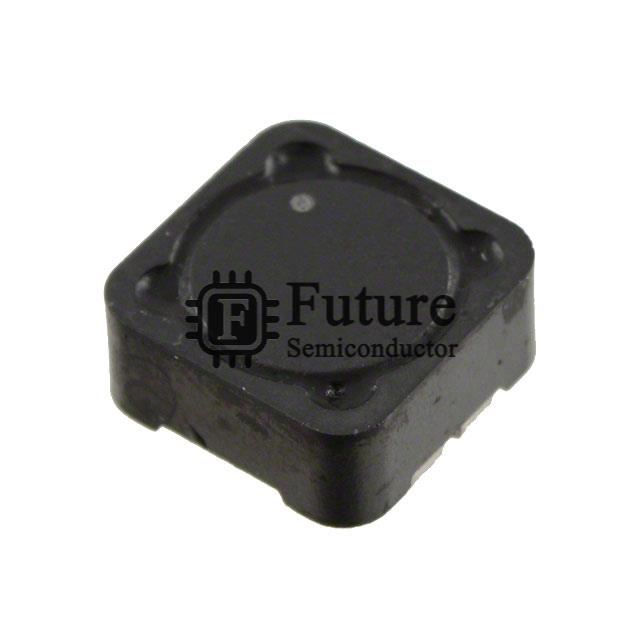

Eaton - Electronics Division DRQ125-330-R
- MFG Part Number
- DRQ125-330-R
- Available Quantity
- 11770 Pieces
- Reference Price
- USD 0.79424
- Our Price
- We have a big discount, please contact us
- Shipping Date
- We can ship out today
- Manufacturer
- Eaton - Electronics Division
- Brief Description
- DRQ INDUCT ARRAY 2 COIL 33.74UH SMD
- Lead Free Status / RoHS Status
- RoHS Compliant (Lead Free)
- Moisture Sensitivity Level (MSL)
- 1 (Unlimited)
- Date Code (D/C)
- New
- Product Category
- Arrays, Signal Transformers
- Stock Resource
- Franchised Distributor
- Warranty
- 360 days quality guarantee
- Datasheet
- DRQ125-330-R.pdf
DRQ125-330-R Specifications
| Manufacturer Part Number | DRQ125-330-R |
|---|---|
| Future Part Number | FT-DRQ125-330-R |
| SPQ / MOQ | Contact Us |
| Packing Material | Reel/Tray/Tube/Others |
| Series | DRQ |
| DRQ125-330-R Status (Lifecycle) | In Stock |
| Part Status | Active |
| Number of Coils | 2 |
| Inductance - Connected In Parallel | 33.74µH |
| Inductance - Connected In Series | 135µH |
| Tolerance | ±20% |
| Current Rating - Parallel | 3.28A |
| Current Rating - Series | 1.64A |
| Current Saturation - Parallel | 3.84A |
| Current Saturation - Series | 1.92A |
| DC Resistance (DCR) - Parallel | 50.5 mOhm |
| DC Resistance (DCR) - Series | 203 mOhm |
| Shielding | Shielded |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Size / Dimension | 0.492" L x 0.492" W (12.50mm x 12.50mm) |
| Height | 0.236" (6.00mm) |
| Country of Origin | USA/JAPAN/MALAYSIA/MEXICO/CN |
| DRQ125-330-R Weight | Contact Us |
| Replacement Part Number | DRQ125-330-R-FT |
