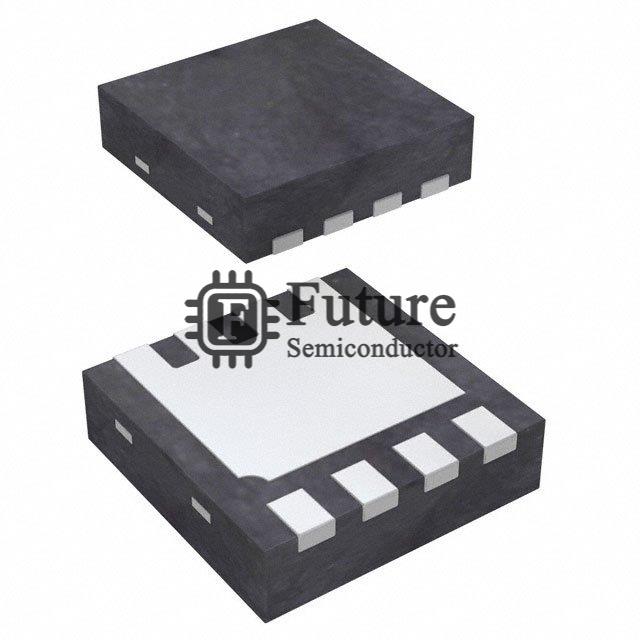

Diodes Incorporated DMT3006LDK-7

Name: DMT3006LDK-7
Brand: Diodes Incorporated
SKU: DMT3006LDK-7
Price: 0.154384 USD
Availability: InStock
Rating: 4.6 (300 reviews)

MFG Part Number: DMT3006LDK-7

Available Quantity: 91570 Pieces

Reference Price: USD 0.154384

Our Price: We have a big discount, please contact us

Shipping Date: We can ship out today

Manufacturer: Diodes Incorporated

Brief Description: - MOSFET N-CH 30V 17.1A VDFN30308

Lead Free Status / RoHS Status: RoHS Compliant (Lead Free)

Moisture Sensitivity Level (MSL): 1 (Unlimited)

Date Code (D/C): New

Product Category: Transistors - FETs, MOSFETs - Single

Stock Resource: Franchised Distributor

Warranty: 360 days quality guarantee

Datasheet: DMT3006LDK-7.pdf

Request Quotation for DMT3006LDK-7

Company Name

Contact Person

Phone Number

Address

Email

Message

DMT3006LDK-7 Specifications

Manufacturer Part Number	DMT3006LDK-7
Future Part Number	FT-DMT3006LDK-7
SPQ / MOQ	Contact Us
Packing Material	Reel/Tray/Tube/Others
Series	-
DMT3006LDK-7 Status (Lifecycle)	In Stock
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	30V
Current - Continuous Drain (Id) @ 25°C	17.1A (Ta), 46.2A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	6.5 mOhm @ 12A, 10V
Vgs(th) (Max) @ Id	3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	22.6nC @ 10V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	1320pF @ 15V
FET Feature	-
Power Dissipation (Max)	1.1W (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	V-DFN3030-8
Package / Case	8-PowerWDFN
Country of Origin	USA/JAPAN/MALAYSIA/MEXICO/CN
DMT3006LDK-7 Weight	Contact Us
Replacement Part Number	DMT3006LDK-7-FT
