Home / Products / Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single / DMN2011UFDE-13
Manufacturer Part Number | DMN2011UFDE-13 |
---|---|
Future Part Number | FT-DMN2011UFDE-13 |
SPQ / MOQ | Contact Us |
Packing Material | Reel/Tray/Tube/Others |
Series | - |
DMN2011UFDE-13 Status (Lifecycle) | In Stock |
Part Status | Active |
FET Type | N-Channel |
Technology | MOSFET (Metal Oxide) |
Drain to Source Voltage (Vdss) | 20V |
Current - Continuous Drain (Id) @ 25°C | 11.7A (Ta) |
Drive Voltage (Max Rds On, Min Rds On) | 1.5V, 4.5V |
Rds On (Max) @ Id, Vgs | 9.5 mOhm @ 7A, 4.5V |
Vgs(th) (Max) @ Id | 1V @ 250µA |
Gate Charge (Qg) (Max) @ Vgs | 84nC @ 10V |
Vgs (Max) | ±12V |
Input Capacitance (Ciss) (Max) @ Vds | 3372pF @ 10V |
FET Feature | - |
Power Dissipation (Max) | 610mW (Ta) |
Operating Temperature | -55°C ~ 150°C (TJ) |
Mounting Type | Surface Mount |

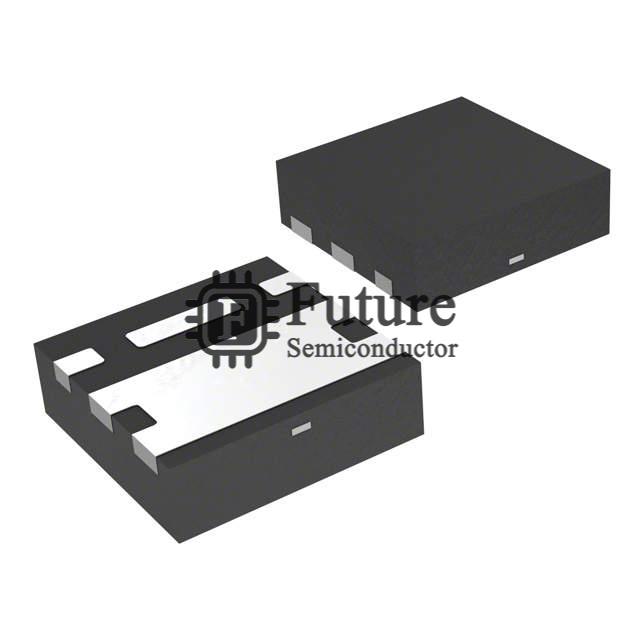

Supplier Device Package | U-DFN2020-6 (Type E) |
Package / Case | 6-UDFN Exposed Pad |
Country of Origin | USA/JAPAN/MALAYSIA/MEXICO/CN |
DMN2011UFDE-13 Weight | Contact Us |
Replacement Part Number | DMN2011UFDE-13-FT |
