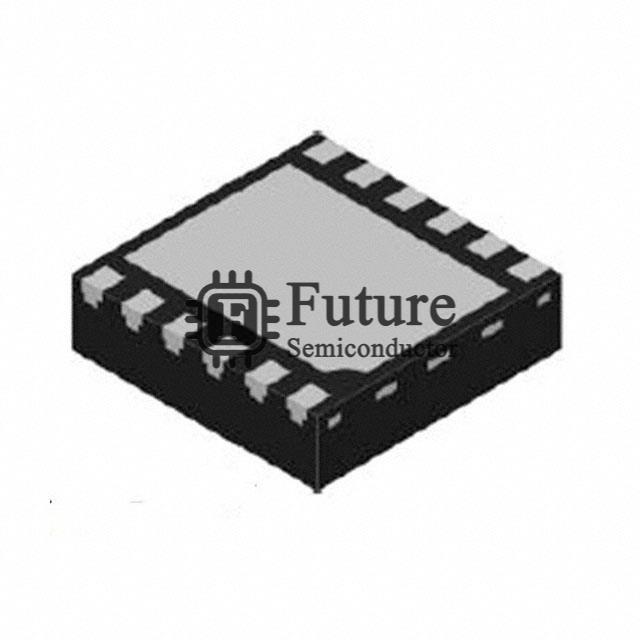

Diodes Incorporated DML3009LDC-7

Name: DML3009LDC-7
Brand: Diodes Incorporated
SKU: DML3009LDC-7
Price: 0.237736 USD
Availability: InStock
Rating: 4.8 (728 reviews)

MFG Part Number: DML3009LDC-7

Available Quantity: 26430 Pieces

Reference Price: USD 0.237736

Our Price: We have a big discount, please contact us

Shipping Date: We can ship out today

Manufacturer: Diodes Incorporated

Brief Description: - 20V LOAD SWITCH V-DFN3030-12 TR

Lead Free Status / RoHS Status: RoHS Compliant (Lead Free)

Moisture Sensitivity Level (MSL): 1 (Unlimited)

Date Code (D/C): New

Product Category: PMIC - Power Distribution Switches, Load Drivers

Stock Resource: Franchised Distributor

Warranty: 360 days quality guarantee

Datasheet: DML3009LDC-7.pdf

Request Quotation for DML3009LDC-7

Company Name

Contact Person

Phone Number

Address

Email

Message

DML3009LDC-7 Specifications

Manufacturer Part Number	DML3009LDC-7
Future Part Number	FT-DML3009LDC-7
SPQ / MOQ	Contact Us
Packing Material	Reel/Tray/Tube/Others
Series	-
DML3009LDC-7 Status (Lifecycle)	In Stock
Part Status	Active
Switch Type	General Purpose
Number of Outputs	1
Ratio - Input:Output	1:1
Output Configuration	High Side
Output Type	N-Channel
Interface	On/Off
Voltage - Load	0.5V ~ 13.5V
Voltage - Supply (Vcc/Vdd)	3V ~ 5.5V
Current - Output (Max)	20A
Rds On (Typ)	6.1 mOhm
Input Type	Non-Inverting
Features	-
Fault Protection	Short-Circuit, Thermal Shutdown, UVLO
Operating Temperature	-40°C ~ 85°C (TA)
Package / Case	12-WFDFN Exposed Pad
Supplier Device Package	V-DFN3030-12
Country of Origin	USA/JAPAN/MALAYSIA/MEXICO/CN
DML3009LDC-7 Weight	Contact Us
Replacement Part Number	DML3009LDC-7-FT
