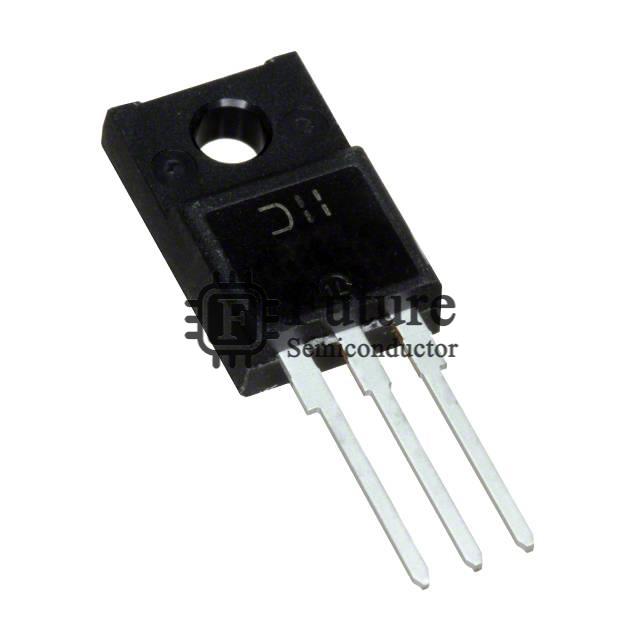

Diodes Incorporated DGTD65T15H2TF

Name: DGTD65T15H2TF
Brand: Diodes Incorporated
SKU: DGTD65T15H2TF
Price: 1.888 USD
Availability: InStock
Rating: 4.9 (171 reviews)

MFG Part Number: DGTD65T15H2TF

Available Quantity: 93320 Pieces

Reference Price: USD 1.888

Our Price: We have a big discount, please contact us

Shipping Date: We can ship out today

Manufacturer: Diodes Incorporated

Brief Description: - IGBT600V-XITO-220AB

Lead Free Status / RoHS Status: RoHS Compliant (Lead Free)

Moisture Sensitivity Level (MSL): 1 (Unlimited)

Date Code (D/C): New

Product Category: Transistors - IGBTs - Single

Stock Resource: Franchised Distributor

Warranty: 360 days quality guarantee

Datasheet: DGTD65T15H2TF.pdf

Request Quotation for DGTD65T15H2TF

Company Name

Contact Person

Phone Number

Address

Email

Message

DGTD65T15H2TF Specifications

Manufacturer Part Number	DGTD65T15H2TF
Future Part Number	FT-DGTD65T15H2TF
SPQ / MOQ	Contact Us
Packing Material	Reel/Tray/Tube/Others
Series	-
DGTD65T15H2TF Status (Lifecycle)	In Stock
Part Status	Active
IGBT Type	Field Stop
Voltage - Collector Emitter Breakdown (Max)	650V
Current - Collector (Ic) (Max)	30A
Current - Collector Pulsed (Icm)	60A
Vce(on) (Max) @ Vge, Ic	2V @ 15V, 15A
Power - Max	48W
Switching Energy	270µJ (on), 86µJ (off)
Input Type	Standard
Gate Charge	61nC
Td (on/off) @ 25°C	19ns/128ns
Test Condition	400V, 15A, 10 Ohm, 15V
Reverse Recovery Time (trr)	150ns
Operating Temperature	-40°C ~ 175°C (TJ)
Mounting Type	Through Hole
Package / Case	TO-220-3 Full Pack, Isolated Tab
Supplier Device Package	ITO-220AB
Country of Origin	USA/JAPAN/MALAYSIA/MEXICO/CN
DGTD65T15H2TF Weight	Contact Us
Replacement Part Number	DGTD65T15H2TF-FT
