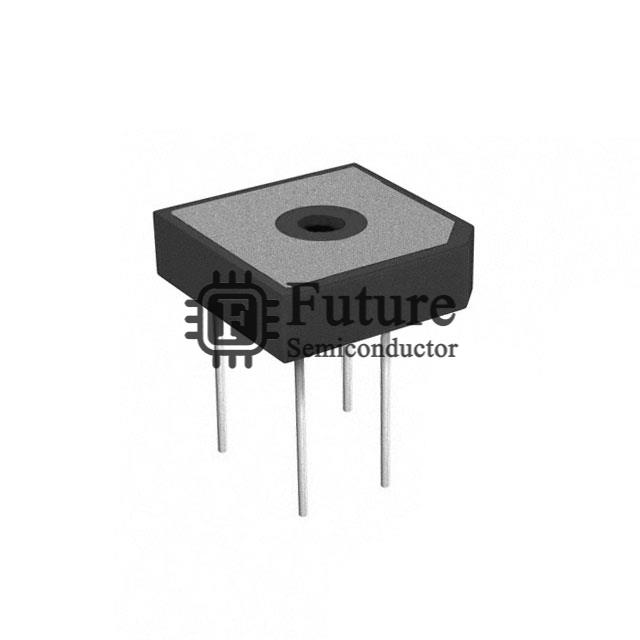

ON Semiconductor DBA100G

Name: DBA100G
Brand: ON Semiconductor
SKU: DBA100G
Availability: InStock
Rating: 4.8 (66 reviews)

MFG Part Number: DBA100G

Available Quantity: 94870 Pieces

Reference Price: USD 0

Our Price: We have a big discount, please contact us

Shipping Date: We can ship out today

Manufacturer: ON Semiconductor

Brief Description: - BRIDGE RECT 1PHASE 600V 3.7A

Lead Free Status / RoHS Status: RoHS Compliant (Lead Free)

Moisture Sensitivity Level (MSL): 1 (Unlimited)

Date Code (D/C): New

Product Category: Diodes - Bridge Rectifiers

Stock Resource: Franchised Distributor

Warranty: 360 days quality guarantee

Datasheet: DBA100G.pdf

DBA100G Specifications

Manufacturer Part Number	DBA100G
Future Part Number	FT-DBA100G
SPQ / MOQ	Contact Us
Packing Material	Reel/Tray/Tube/Others
Series	-
DBA100G Status (Lifecycle)	In Stock
Part Status	Obsolete
Diode Type	Single Phase
Technology	Standard
Voltage - Peak Reverse (Max)	600V
Current - Average Rectified (Io)	3.7A
Voltage - Forward (Vf) (Max) @ If	1.05V @ 5A
Current - Reverse Leakage @ Vr	10µA @ 600V
Operating Temperature	150°C (TJ)
Mounting Type	Through Hole
Package / Case	4-Square, GBPC-W
Supplier Device Package	-
Country of Origin	USA/JAPAN/MALAYSIA/MEXICO/CN
DBA100G Weight	Contact Us
Replacement Part Number	DBA100G-FT
