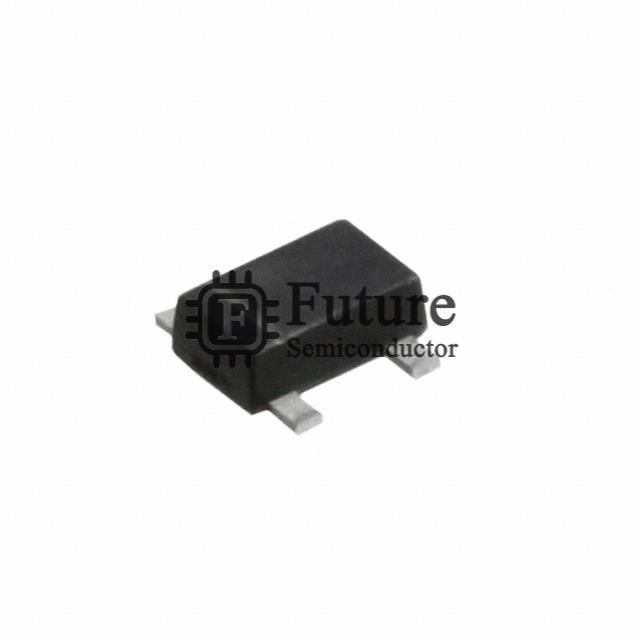

Panasonic Electronic Components DB4J314K0R

Name: DB4J314K0R
Brand: Panasonic Electronic Components
SKU: DB4J314K0R
Price: 0.05584 USD
Availability: InStock
Rating: 4.9 (685 reviews)

MFG Part Number: DB4J314K0R

Available Quantity: 52820 Pieces

Reference Price: USD 0.05584

Our Price: We have a big discount, please contact us

Shipping Date: We can ship out today

Manufacturer: Panasonic Electronic Components

Brief Description: - DIODE ARRAY SCHOTTKY 30V SMINI4

Lead Free Status / RoHS Status: RoHS Compliant (Lead Free)

Moisture Sensitivity Level (MSL): 1 (Unlimited)

Date Code (D/C): New

Product Category: Diodes - Rectifiers - Arrays

Stock Resource: Franchised Distributor

Warranty: 360 days quality guarantee

Datasheet: DB4J314K0R.pdf

DB4J314K0R Specifications

Manufacturer Part Number	DB4J314K0R
Future Part Number	FT-DB4J314K0R
SPQ / MOQ	Contact Us
Packing Material	Reel/Tray/Tube/Others
Series	-
DB4J314K0R Status (Lifecycle)	In Stock
Part Status	Active
Diode Configuration	2 Independent
Diode Type	Schottky
Voltage - DC Reverse (Vr) (Max)	30V
Current - Average Rectified (Io) (per Diode)	30mA (DC)
Voltage - Forward (Vf) (Max) @ If	1V @ 30mA
Speed	Small Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr)	1ns
Current - Reverse Leakage @ Vr	300nA @ 30V
Operating Temperature - Junction	125°C (Max)
Mounting Type	Surface Mount
Package / Case	4-SMD, Flat Leads
Supplier Device Package	SMini4-F3-B
Country of Origin	USA/JAPAN/MALAYSIA/MEXICO/CN
DB4J314K0R Weight	Contact Us
Replacement Part Number	DB4J314K0R-FT
