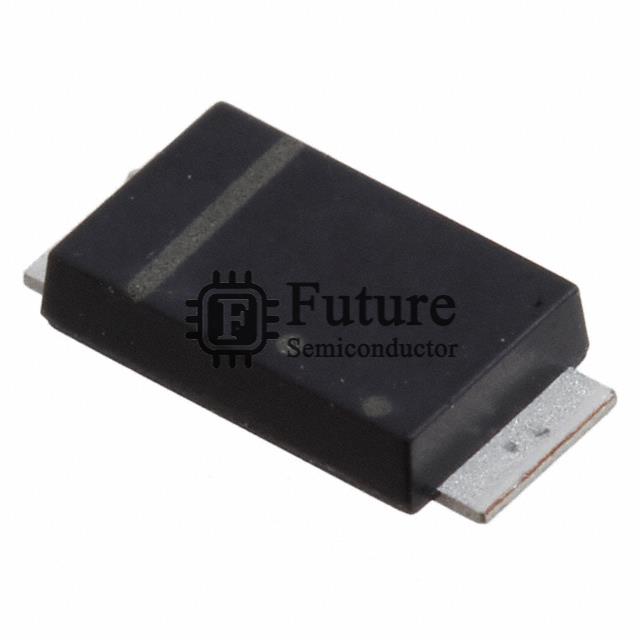

Panasonic Electronic Components DB2441700L

Name: DB2441700L
Brand: Panasonic Electronic Components
SKU: DB2441700L
Price: 0.19488 USD
Availability: InStock
Rating: 4.6 (75 reviews)

MFG Part Number: DB2441700L

Available Quantity: 17610 Pieces

Reference Price: USD 0.19488

Our Price: We have a big discount, please contact us

Shipping Date: We can ship out today

Manufacturer: Panasonic Electronic Components

Brief Description: - DIODE SCHOTTKY 40V 5A TMINIP2

Lead Free Status / RoHS Status: RoHS Compliant (Lead Free)

Moisture Sensitivity Level (MSL): 1 (Unlimited)

Date Code (D/C): New

Product Category: Diodes - Rectifiers - Single

Stock Resource: Franchised Distributor

Warranty: 360 days quality guarantee

Datasheet: DB2441700L.pdf

Request Quotation for DB2441700L

Company Name

Contact Person

Phone Number

Address

Email

Message

DB2441700L Specifications

Manufacturer Part Number	DB2441700L
Future Part Number	FT-DB2441700L
SPQ / MOQ	Contact Us
Packing Material	Reel/Tray/Tube/Others
Series	-
DB2441700L Status (Lifecycle)	In Stock
Part Status	Active
Diode Type	Schottky
Voltage - DC Reverse (Vr) (Max)	40V
Current - Average Rectified (Io)	5A
Voltage - Forward (Vf) (Max) @ If	540mV @ 5A
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)	30ns
Current - Reverse Leakage @ Vr	300µA @ 40V
Capacitance @ Vr, F	95pF @ 10V, 1MHz
Mounting Type	Surface Mount
Package / Case	SOD-128
Supplier Device Package	TMiniP2-F2-B
Operating Temperature - Junction	125°C (Max)
Country of Origin	USA/JAPAN/MALAYSIA/MEXICO/CN
DB2441700L Weight	Contact Us
Replacement Part Number	DB2441700L-FT
