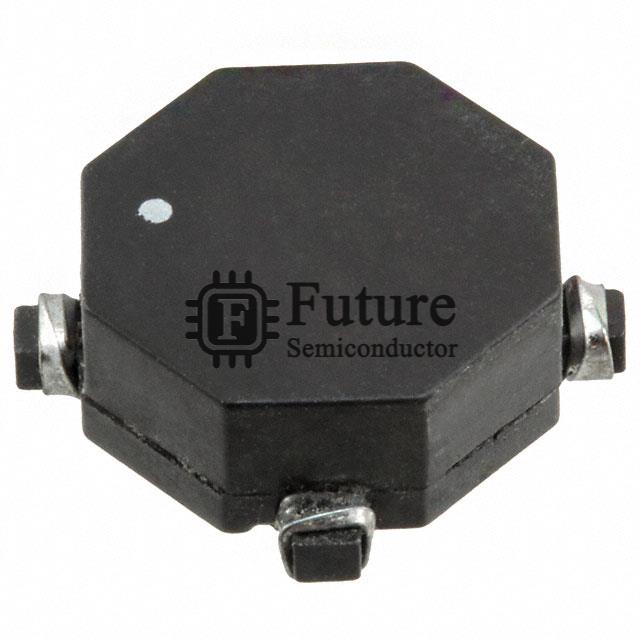

Eaton - Electronics Division CTX50-1P-R

Name: CTX50-1P-R
Brand: Eaton - Electronics Division
SKU: CTX50-1P-R
Price: 1.20776 USD
Availability: InStock
Rating: 4.6 (263 reviews)

MFG Part Number: CTX50-1P-R

Available Quantity: 88730 Pieces

Reference Price: USD 1.20776

Our Price: We have a big discount, please contact us

Shipping Date: We can ship out today

Manufacturer: Eaton - Electronics Division

Brief Description: Econo-Pac™ INDUCT ARRAY 2 COIL 50.52UH SMD

Lead Free Status / RoHS Status: RoHS Compliant (Lead Free)

Moisture Sensitivity Level (MSL): 1 (Unlimited)

Date Code (D/C): New

Product Category: Arrays, Signal Transformers

Stock Resource: Franchised Distributor

Warranty: 360 days quality guarantee

Datasheet: CTX50-1P-R.pdf

Request Quotation for CTX50-1P-R

Company Name

Contact Person

Phone Number

Address

Email

Message

CTX50-1P-R Specifications

Manufacturer Part Number	CTX50-1P-R
Future Part Number	FT-CTX50-1P-R
SPQ / MOQ	Contact Us
Packing Material	Reel/Tray/Tube/Others
Series	Econo-Pac™
CTX50-1P-R Status (Lifecycle)	In Stock
Part Status	Active
Number of Coils	2
Inductance - Connected In Parallel	50.52µH
Inductance - Connected In Series	202.07µH
Tolerance	±20%
Current Rating - Parallel	700mA
Current Rating - Series	350mA
Current Saturation - Parallel	-
Current Saturation - Series	-
DC Resistance (DCR) - Parallel	316 mOhm Max
DC Resistance (DCR) - Series	1.263 Ohm Max
Shielding	Unshielded
Ratings	-
Operating Temperature	-40°C ~ 85°C
Mounting Type	Surface Mount
Package / Case	Nonstandard
Size / Dimension	0.450" L x 0.450" W (11.43mm x 11.43mm)
Height	0.165" (4.19mm)
Country of Origin	USA/JAPAN/MALAYSIA/MEXICO/CN
CTX50-1P-R Weight	Contact Us
Replacement Part Number	CTX50-1P-R-FT
