Home / Products / Inductors, Coils, Chokes / Fixed Inductors / CTX100-5-52M-R

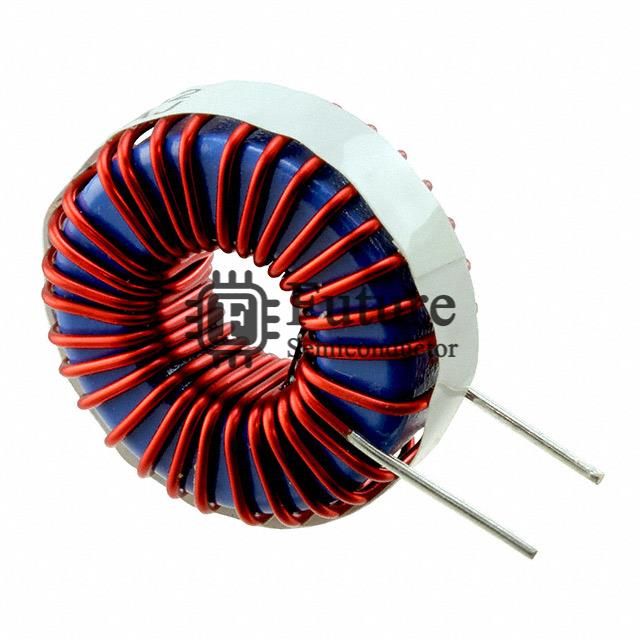

Eaton - Electronics Division CTX100-5-52M-R
- MFG Part Number
- CTX100-5-52M-R
- Available Quantity
- 91240 Pieces
- Reference Price
- USD 6.2784
- Our Price
- We have a big discount, please contact us
- Shipping Date
- We can ship out today
- Manufacturer
- Eaton - Electronics Division
- Brief Description
- CTX FIXED Inductors 100UH 8.2A 26.7 MOHM
- Lead Free Status / RoHS Status
- RoHS Compliant (Lead Free)
- Moisture Sensitivity Level (MSL)
- 1 (Unlimited)
- Date Code (D/C)
- New
- Product Category
- Fixed Inductors
- Stock Resource
- Franchised Distributor
- Warranty
- 360 days quality guarantee
- Datasheet
- CTX100-5-52M-R.pdf
CTX100-5-52M-R Specifications
| Manufacturer Part Number | CTX100-5-52M-R |
|---|---|
| Future Part Number | FT-CTX100-5-52M-R |
| SPQ / MOQ | Contact Us |
| Packing Material | Reel/Tray/Tube/Others |
| Series | CTX |
| CTX100-5-52M-R Status (Lifecycle) | In Stock |
| Part Status | Active |
| Type | Toroidal |
| Material - Core | Iron Powder |
| Inductance | 100µH |
| Tolerance | ±20% |
| Current Rating | 8.2A |
| Current - Saturation | 7.5A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 26.7 mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 75°C |
| Inductance Frequency - Test | 100kHz |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Supplier Device Package | - |
| Size / Dimension | 1.394" L x 0.854" W (35.40mm x 21.70mm) |
| Height - Seated (Max) | 1.583" (40.20mm) |
| Country of Origin | USA/JAPAN/MALAYSIA/MEXICO/CN |
| CTX100-5-52M-R Weight | Contact Us |
| Replacement Part Number | CTX100-5-52M-R-FT |
