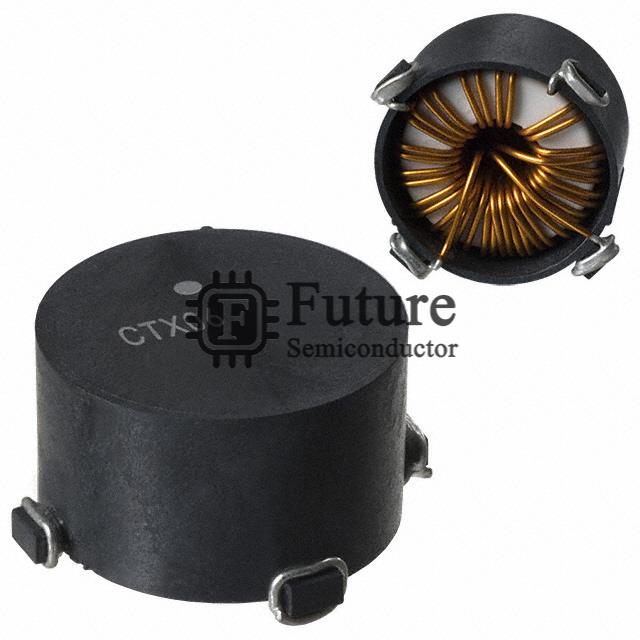

Eaton - Electronics Division CTX06-14622

Name: CTX06-14622
Brand: Eaton - Electronics Division
SKU: CTX06-14622
Price: 10.064 USD
Availability: InStock
Rating: 4.6 (694 reviews)

MFG Part Number: CTX06-14622

Available Quantity: 79930 Pieces

Reference Price: USD 10.064

Our Price: We have a big discount, please contact us

Shipping Date: We can ship out today

Manufacturer: Eaton - Electronics Division

Brief Description: CTX FIXED Inductors 22UH 8.5A 11.7 MOHM

Lead Free Status / RoHS Status: RoHS Compliant (Lead Free)

Moisture Sensitivity Level (MSL): 1 (Unlimited)

Date Code (D/C): New

Product Category: Fixed Inductors

Stock Resource: Franchised Distributor

Warranty: 360 days quality guarantee

Datasheet: CTX06-14622.pdf

Request Quotation for CTX06-14622

Company Name

Contact Person

Phone Number

Address

Email

Message

CTX06-14622 Specifications

Manufacturer Part Number	CTX06-14622
Future Part Number	FT-CTX06-14622
SPQ / MOQ	Contact Us
Packing Material	Reel/Tray/Tube/Others
Series	CTX
CTX06-14622 Status (Lifecycle)	In Stock
Part Status	Active
Type	Toroidal
Material - Core	Iron Powder
Inductance	22µH
Tolerance	±0.25%
Current Rating	8.5A
Current - Saturation	-
Shielding	Unshielded
DC Resistance (DCR)	11.7 mOhm Max
Q @ Freq	-
Frequency - Self Resonant	-
Ratings	-
Operating Temperature	-40°C ~ 75°C
Inductance Frequency - Test	100kHz
Features	-
Mounting Type	Surface Mount
Package / Case	Nonstandard
Supplier Device Package	-
Size / Dimension	0.984" L x 0.984" W (25.00mm x 25.00mm)
Height - Seated (Max)	0.484" (12.30mm)
Country of Origin	USA/JAPAN/MALAYSIA/MEXICO/CN
CTX06-14622 Weight	Contact Us
Replacement Part Number	CTX06-14622-FT
