Home / Products / Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single / CTLDM3590 TR

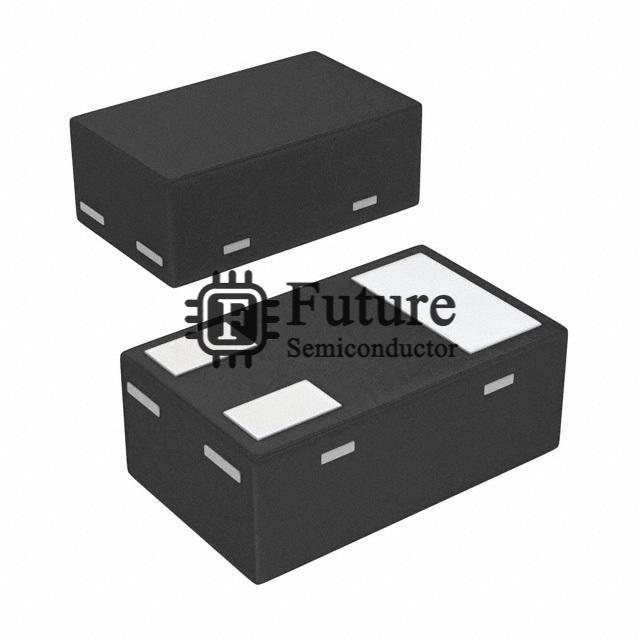

Central Semiconductor Corp CTLDM3590 TR
- MFG Part Number
- CTLDM3590 TR
- Available Quantity
- 83060 Pieces
- Reference Price
- USD 0
- Our Price
- We have a big discount, please contact us
- Shipping Date
- We can ship out today
- Manufacturer
- Central Semiconductor Corp
- Brief Description
- - MOSFET N-CH 20V 0.16A TLM3D6D8
- Lead Free Status / RoHS Status
- RoHS Compliant (Lead Free)
- Moisture Sensitivity Level (MSL)
- 1 (Unlimited)
- Date Code (D/C)
- New
- Product Category
- Transistors - FETs, MOSFETs - Single
- Stock Resource
- Franchised Distributor
- Warranty
- 360 days quality guarantee
- Datasheet
- CTLDM3590 TR.pdf
CTLDM3590 TR Specifications
| Manufacturer Part Number | CTLDM3590 TR |
|---|---|
| Future Part Number | FT-CTLDM3590 TR |
| SPQ / MOQ | Contact Us |
| Packing Material | Reel/Tray/Tube/Others |
| Series | - |
| CTLDM3590 TR Status (Lifecycle) | In Stock |
| Part Status | Obsolete |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 20V |
| Current - Continuous Drain (Id) @ 25°C | 160mA (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 1.2V, 4.5V |
| Rds On (Max) @ Id, Vgs | 3 Ohm @ 100mA, 4.5V |
| Vgs(th) (Max) @ Id | 1V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 0.46nC @ 4.5V |
| Vgs (Max) | 8V |
| Input Capacitance (Ciss) (Max) @ Vds | 9pF @ 15V |
| FET Feature | - |
| Power Dissipation (Max) | 125mW (Ta) |
| Operating Temperature | -65°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | TLM3D6D8 |
| Package / Case | 3-XFDFN |
| Country of Origin | USA/JAPAN/MALAYSIA/MEXICO/CN |
| CTLDM3590 TR Weight | Contact Us |
| Replacement Part Number | CTLDM3590 TR-FT |
