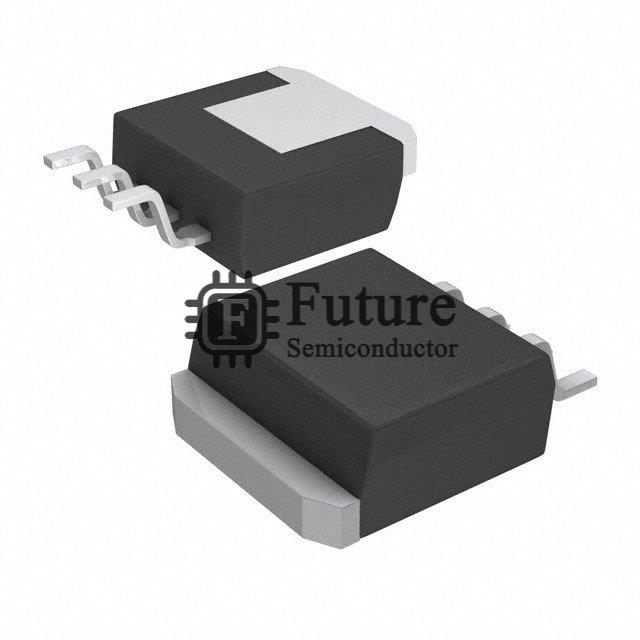

Texas Instruments CSD18536KTTT
- MFG Part Number
- CSD18536KTTT
- Available Quantity
- 69390 Pieces
- Reference Price
- USD 3.35264
- Our Price
- We have a big discount, please contact us
- Shipping Date
- We can ship out today
- Manufacturer
- Texas Instruments
- Brief Description
- NexFET™ MOSFET N-CH 60V 200A DDPAK
- Lead Free Status / RoHS Status
- RoHS Compliant (Lead Free)
- Moisture Sensitivity Level (MSL)
- 1 (Unlimited)
- Date Code (D/C)
- New
- Product Category
- Transistors - FETs, MOSFETs - Single
- Stock Resource
- Franchised Distributor
- Warranty
- 360 days quality guarantee
- Datasheet
- CSD18536KTTT.pdf
CSD18536KTTT Specifications
| Manufacturer Part Number | CSD18536KTTT |
|---|---|
| Future Part Number | FT-CSD18536KTTT |
| SPQ / MOQ | Contact Us |
| Packing Material | Reel/Tray/Tube/Others |
| Series | NexFET™ |
| CSD18536KTTT Status (Lifecycle) | In Stock |
| Part Status | Active |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 60V |
| Current - Continuous Drain (Id) @ 25°C | 200A (Ta), 279A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 1.6 mOhm @ 100A, 10V |
| Vgs(th) (Max) @ Id | 2.2V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 140nC @ 10V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 11430pF @ 30V |
| FET Feature | - |
| Power Dissipation (Max) | 375W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | DDPAK/TO-263-3 |
| Package / Case | TO-263-4, D²Pak (3 Leads + Tab), TO-263AA |
| Country of Origin | USA/JAPAN/MALAYSIA/MEXICO/CN |
| CSD18536KTTT Weight | Contact Us |
| Replacement Part Number | CSD18536KTTT-FT |
