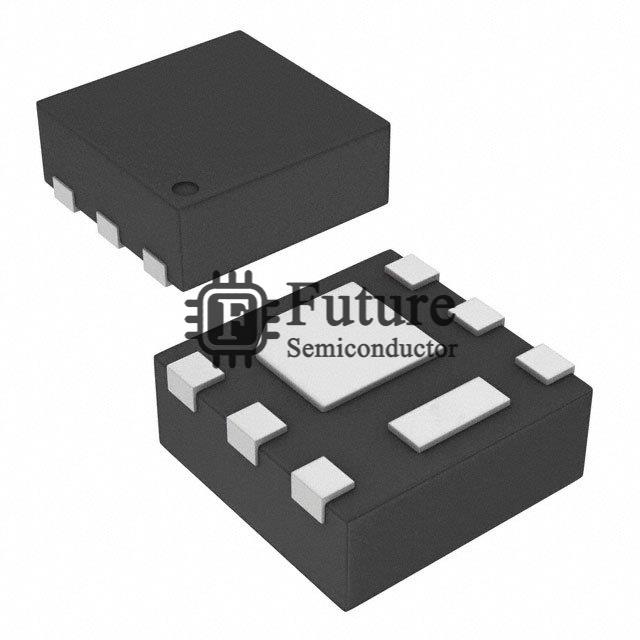

Texas Instruments CSD17313Q2Q1T

Name: CSD17313Q2Q1T
Brand: Texas Instruments
SKU: CSD17313Q2Q1T
Price: 0.19456 USD
Availability: InStock
Rating: 4.9 (435 reviews)

MFG Part Number: CSD17313Q2Q1T

Available Quantity: 10730 Pieces

Reference Price: USD 0.19456

Our Price: We have a big discount, please contact us

Shipping Date: We can ship out today

Manufacturer: Texas Instruments

Brief Description: NexFET™ MOSFET N-CH 30V 5A 6WSON

Lead Free Status / RoHS Status: RoHS Compliant (Lead Free)

Moisture Sensitivity Level (MSL): 1 (Unlimited)

Date Code (D/C): New

Product Category: Transistors - FETs, MOSFETs - Single

Stock Resource: Franchised Distributor

Warranty: 360 days quality guarantee

Datasheet: CSD17313Q2Q1T.pdf

Request Quotation for CSD17313Q2Q1T

Company Name

Contact Person

Phone Number

Address

Email

Message

CSD17313Q2Q1T Specifications

Manufacturer Part Number	CSD17313Q2Q1T
Future Part Number	FT-CSD17313Q2Q1T
SPQ / MOQ	Contact Us
Packing Material	Reel/Tray/Tube/Others
Series	NexFET™
CSD17313Q2Q1T Status (Lifecycle)	In Stock
Part Status	Not For New Designs
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	30V
Current - Continuous Drain (Id) @ 25°C	5A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	3V, 8V
Rds On (Max) @ Id, Vgs	30 mOhm @ 4A, 8V
Vgs(th) (Max) @ Id	1.8V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	2.7nC @ 4.5V
Vgs (Max)	+10V, -8V
Input Capacitance (Ciss) (Max) @ Vds	340pF @ 15V
FET Feature	-
Power Dissipation (Max)	2.4W (Ta), 17W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	6-WSON (2x2)
Package / Case	6-WDFN Exposed Pad
Country of Origin	USA/JAPAN/MALAYSIA/MEXICO/CN
CSD17313Q2Q1T Weight	Contact Us
Replacement Part Number	CSD17313Q2Q1T-FT
