ON Semiconductor CS8120YTVA5

Name: CS8120YTVA5
Brand: ON Semiconductor
SKU: CS8120YTVA5
Availability: InStock
Rating: 5.0 (214 reviews)

MFG Part Number: CS8120YTVA5

Available Quantity: 95800 Pieces

Reference Price: USD 0

Our Price: We have a big discount, please contact us

Shipping Date: We can ship out today

Manufacturer: ON Semiconductor

Brief Description: - IC REG LIN 5V 300MA TO220-5

Lead Free Status / RoHS Status: RoHS Compliant (Lead Free)

Moisture Sensitivity Level (MSL): 1 (Unlimited)

Date Code (D/C): New

Product Category: PMIC - Voltage Regulators - Linear

Stock Resource: Franchised Distributor

Warranty: 360 days quality guarantee

Datasheet: CS8120YTVA5.pdf

CS8120YTVA5 Specifications

Manufacturer Part Number	CS8120YTVA5
Future Part Number	FT-CS8120YTVA5
SPQ / MOQ	Contact Us
Packing Material	Reel/Tray/Tube/Others
Series	-
CS8120YTVA5 Status (Lifecycle)	In Stock
Part Status	Obsolete
Output Configuration	Positive
Output Type	Fixed
Number of Regulators	1
Voltage - Input (Max)	26V
Voltage - Output (Min/Fixed)	5V
Voltage - Output (Max)	-
Voltage Dropout (Max)	1.5V @ 200mA
Current - Output	300mA
Current - Quiescent (Iq)	650µA
Current - Supply (Max)	15mA
PSRR	70dB (120Hz)
Control Features	Enable, Reset
Protection Features	Over Temperature, Over Voltage, Short Circuit
Operating Temperature	-40°C ~ 125°C
Mounting Type	Through Hole

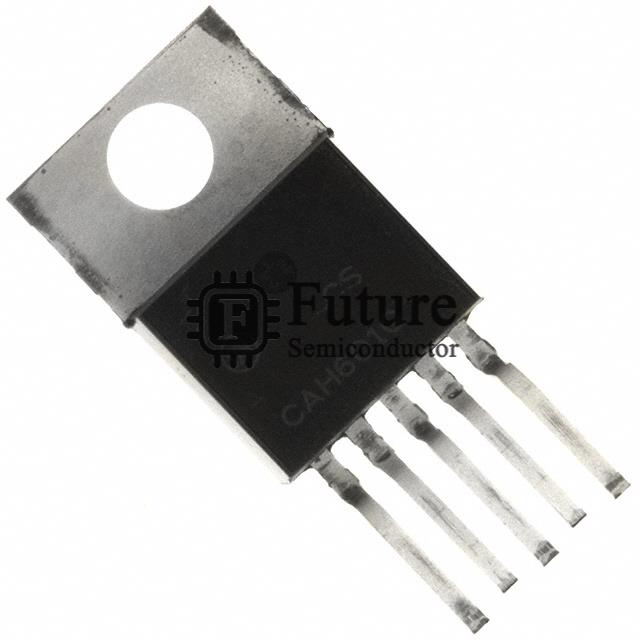

Package / Case	TO-220-5 Formed Leads
Supplier Device Package	TO-220-5 Vertical
Country of Origin	USA/JAPAN/MALAYSIA/MEXICO/CN
CS8120YTVA5 Weight	Contact Us
Replacement Part Number	CS8120YTVA5-FT
