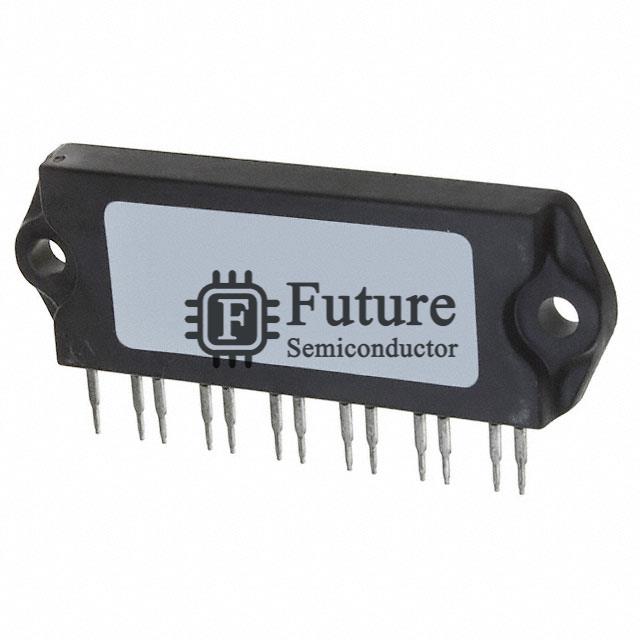

Vishay Semiconductor Diodes Division CPV364M4U

Name: CPV364M4U
Brand: Vishay Semiconductor Diodes Division
SKU: CPV364M4U
Price: 34.518104 USD
Availability: InStock
Rating: 5.0 (589 reviews)

MFG Part Number: CPV364M4U

Available Quantity: 93640 Pieces

Reference Price: USD 34.518104

Our Price: We have a big discount, please contact us

Shipping Date: We can ship out today

Manufacturer: Vishay Semiconductor Diodes Division

Brief Description: - IGBT SIP MODULE 600V 10A IMS-2

Lead Free Status / RoHS Status: RoHS Compliant (Lead Free)

Moisture Sensitivity Level (MSL): 1 (Unlimited)

Date Code (D/C): New

Product Category: Transistors - IGBTs - Modules

Stock Resource: Franchised Distributor

Warranty: 360 days quality guarantee

Datasheet: CPV364M4U.pdf

Request Quotation for CPV364M4U

Company Name

Contact Person

Phone Number

Address

Email

Message

CPV364M4U Specifications

Manufacturer Part Number	CPV364M4U
Future Part Number	FT-CPV364M4U
SPQ / MOQ	Contact Us
Packing Material	Reel/Tray/Tube/Others
Series	-
CPV364M4U Status (Lifecycle)	In Stock
Part Status	Active
IGBT Type	-
Configuration	Three Phase Inverter
Voltage - Collector Emitter Breakdown (Max)	600V
Current - Collector (Ic) (Max)	20A
Power - Max	63W
Vce(on) (Max) @ Vge, Ic	1.84V @ 15V, 20A
Current - Collector Cutoff (Max)	250µA
Input Capacitance (Cies) @ Vce	2.1nF @ 30V
Input	Standard
NTC Thermistor	No
Operating Temperature	-40°C ~ 150°C (TJ)
Mounting Type	Through Hole
Package / Case	19-SIP (13 Leads), IMS-2
Supplier Device Package	IMS-2
Country of Origin	USA/JAPAN/MALAYSIA/MEXICO/CN
CPV364M4U Weight	Contact Us
Replacement Part Number	CPV364M4U-FT
