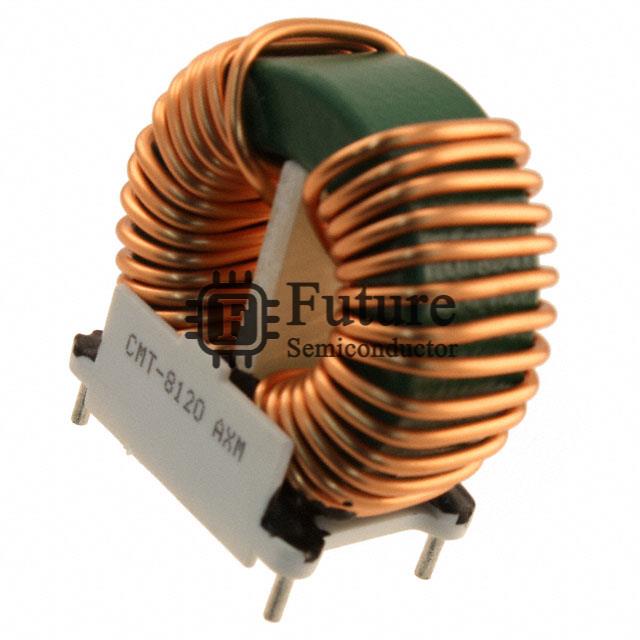

Triad Magnetics CMT-8120
- MFG Part Number
- CMT-8120
- Available Quantity
- 27980 Pieces
- Reference Price
- USD 6.848
- Our Price
- We have a big discount, please contact us
- Shipping Date
- We can ship out today
- Manufacturer
- Triad Magnetics
- Brief Description
- CMT CMC 2.4MH 17A 2LN TH
- Lead Free Status / RoHS Status
- RoHS Compliant (Lead Free)
- Moisture Sensitivity Level (MSL)
- 1 (Unlimited)
- Date Code (D/C)
- New
- Product Category
- Common Mode Chokes
- Stock Resource
- Franchised Distributor
- Warranty
- 360 days quality guarantee
- Datasheet
- CMT-8120.pdf
CMT-8120 Specifications
| Manufacturer Part Number | CMT-8120 |
|---|---|
| Future Part Number | FT-CMT-8120 |
| SPQ / MOQ | Contact Us |
| Packing Material | Reel/Tray/Tube/Others |
| Series | CMT |
| CMT-8120 Status (Lifecycle) | In Stock |
| Part Status | Active |
| Filter Type | Power Line |
| Number of Lines | 2 |
| Impedance @ Frequency | - |
| Inductance @ Frequency | 2.4mH @ 1kHz |
| Current Rating (Max) | 17A |
| DC Resistance (DCR) (Max) | 8 mOhm |
| Voltage Rating - DC | - |
| Voltage Rating - AC | 250V |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | - |
| Approvals | - |
| Features | ESD |
| Mounting Type | Through Hole |
| Size / Dimension | 1.700" L x 0.900" W (43.18mm x 22.86mm) |
| Height (Max) | 1.650" (41.91mm) |
| Package / Case | Vertical, 4 PC Pin |
| Country of Origin | USA/JAPAN/MALAYSIA/MEXICO/CN |
| CMT-8120 Weight | Contact Us |
| Replacement Part Number | CMT-8120-FT |
