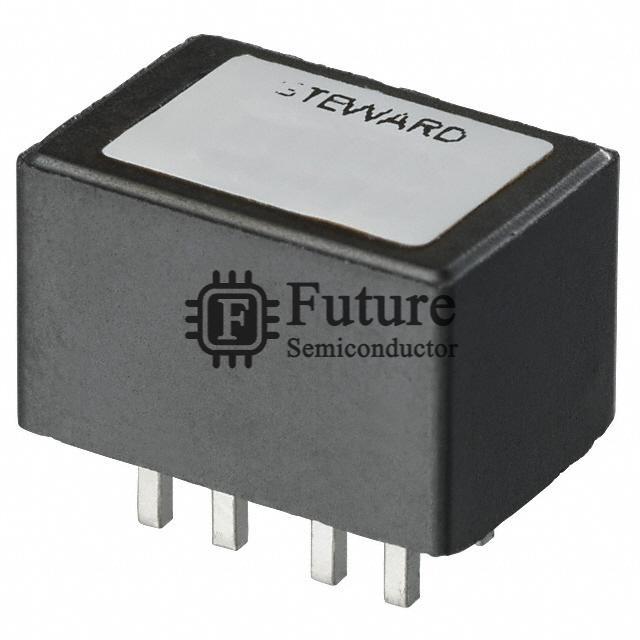

Laird-Signal Integrity Products CM5740Z171B-00

Name: CM5740Z171B-00
Brand: Laird-Signal Integrity Products
SKU: CM5740Z171B-00
Availability: InStock
Rating: 4.6 (378 reviews)

MFG Part Number: CM5740Z171B-00

Available Quantity: 87820 Pieces

Reference Price: USD 0

Our Price: We have a big discount, please contact us

Shipping Date: We can ship out today

Manufacturer: Laird-Signal Integrity Products

Brief Description: CM CMC 20A 4LN 170 OHM TH

Lead Free Status / RoHS Status: RoHS Compliant (Lead Free)

Moisture Sensitivity Level (MSL): 1 (Unlimited)

Date Code (D/C): New

Product Category: Common Mode Chokes

Stock Resource: Franchised Distributor

Warranty: 360 days quality guarantee

Datasheet: CM5740Z171B-00.pdf

Request Quotation for CM5740Z171B-00

Company Name

Contact Person

Phone Number

Address

Email

Message

CM5740Z171B-00 Specifications

Manufacturer Part Number	CM5740Z171B-00
Future Part Number	FT-CM5740Z171B-00
SPQ / MOQ	Contact Us
Packing Material	Reel/Tray/Tube/Others
Series	CM
CM5740Z171B-00 Status (Lifecycle)	In Stock
Part Status	Obsolete
Filter Type	Power Line
Number of Lines	4
Impedance @ Frequency	170 Ohms @ 100MHz
Inductance @ Frequency	-
Current Rating (Max)	20A
DC Resistance (DCR) (Max)	1 mOhm
Voltage Rating - DC	-
Voltage Rating - AC	-
Operating Temperature	-55°C ~ 125°C
Ratings	-
Approvals	-
Features	-
Mounting Type	Through Hole
Size / Dimension	0.570" L x 0.395" W (14.48mm x 10.03mm)
Height (Max)	0.367" (9.32mm)
Package / Case	Vertical, 8 PC Pin
Country of Origin	USA/JAPAN/MALAYSIA/MEXICO/CN
CM5740Z171B-00 Weight	Contact Us
Replacement Part Number	CM5740Z171B-00-FT
