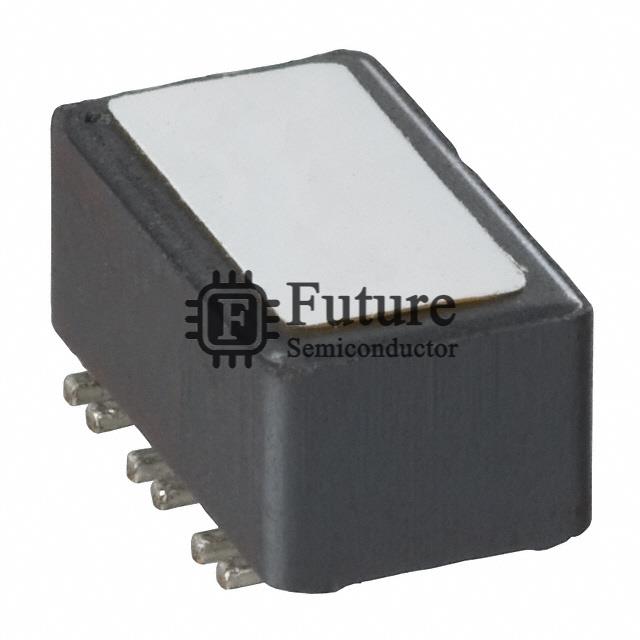

Laird-Signal Integrity Products CM3822R800R-10

Name: CM3822R800R-10
Brand: Laird-Signal Integrity Products
SKU: CM3822R800R-10
Price: 0.930824 USD
Availability: InStock
Rating: 4.9 (151 reviews)

MFG Part Number: CM3822R800R-10

Available Quantity: 93970 Pieces

Reference Price: USD 0.930824

Our Price: We have a big discount, please contact us

Shipping Date: We can ship out today

Manufacturer: Laird-Signal Integrity Products

Brief Description: CM CMC 5A 6LN 80 OHM SMD

Lead Free Status / RoHS Status: RoHS Compliant (Lead Free)

Moisture Sensitivity Level (MSL): 1 (Unlimited)

Date Code (D/C): New

Product Category: Common Mode Chokes

Stock Resource: Franchised Distributor

Warranty: 360 days quality guarantee

Datasheet: CM3822R800R-10.pdf

Request Quotation for CM3822R800R-10

Company Name

Contact Person

Phone Number

Address

Email

Message

CM3822R800R-10 Specifications

Manufacturer Part Number	CM3822R800R-10
Future Part Number	FT-CM3822R800R-10
SPQ / MOQ	Contact Us
Packing Material	Reel/Tray/Tube/Others
Series	CM
CM3822R800R-10 Status (Lifecycle)	In Stock
Part Status	Active
Filter Type	Power Line
Number of Lines	6
Impedance @ Frequency	80 Ohms @ 100MHz
Inductance @ Frequency	-
Current Rating (Max)	5A
DC Resistance (DCR) (Max)	20 mOhm
Voltage Rating - DC	-
Voltage Rating - AC	-
Operating Temperature	-40°C ~ 125°C
Ratings	-
Approvals	-
Features	-
Mounting Type	Surface Mount
Size / Dimension	0.385" L x 0.265" W (9.78mm x 6.73mm)
Height (Max)	0.197" (5.00mm)
Package / Case	Vertical, 12 Flat Lead
Country of Origin	USA/JAPAN/MALAYSIA/MEXICO/CN
CM3822R800R-10 Weight	Contact Us
Replacement Part Number	CM3822R800R-10-FT
