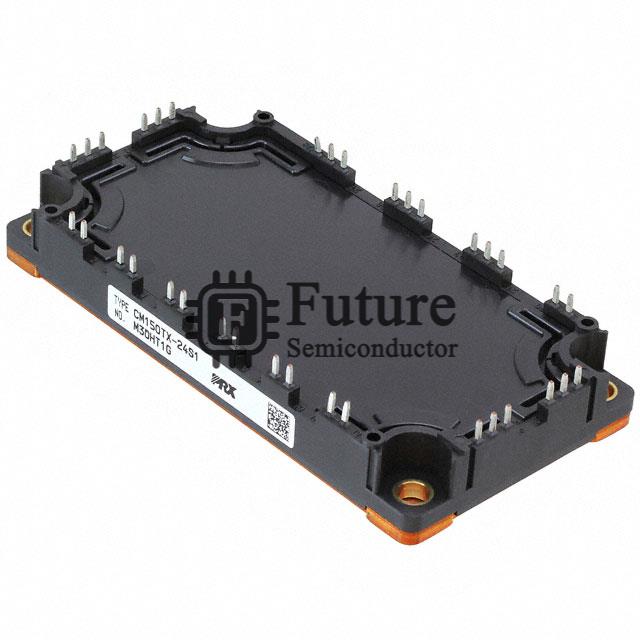

Powerex Inc. CM150TX-24S1
- MFG Part Number
- CM150TX-24S1
- Available Quantity
- 22020 Pieces
- Reference Price
- USD 0
- Our Price
- We have a big discount, please contact us
- Shipping Date
- We can ship out today
- Manufacturer
- Powerex Inc.
- Brief Description
- - IGBT MOD NX 150A 1200V 6-PAC
- Lead Free Status / RoHS Status
- RoHS Compliant (Lead Free)
- Moisture Sensitivity Level (MSL)
- 1 (Unlimited)
- Date Code (D/C)
- New
- Product Category
- Transistors - IGBTs - Modules
- Stock Resource
- Franchised Distributor
- Warranty
- 360 days quality guarantee
- Datasheet
- CM150TX-24S1.pdf
CM150TX-24S1 Specifications
| Manufacturer Part Number | CM150TX-24S1 |
|---|---|
| Future Part Number | FT-CM150TX-24S1 |
| SPQ / MOQ | Contact Us |
| Packing Material | Reel/Tray/Tube/Others |
| Series | - |
| CM150TX-24S1 Status (Lifecycle) | In Stock |
| Part Status | Discontinued at Future Semiconductor |
| IGBT Type | - |
| Configuration | Three Level Inverter |
| Voltage - Collector Emitter Breakdown (Max) | 1200V |
| Current - Collector (Ic) (Max) | 150A |
| Power - Max | 935W |
| Vce(on) (Max) @ Vge, Ic | 2.25V @ 15V, 150A |
| Current - Collector Cutoff (Max) | 1mA |
| Input Capacitance (Cies) @ Vce | 15nF @ 10V |
| Input | Standard |
| NTC Thermistor | Yes |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | - |
| Package / Case | Module |
| Supplier Device Package | Module |
| Country of Origin | USA/JAPAN/MALAYSIA/MEXICO/CN |
| CM150TX-24S1 Weight | Contact Us |
| Replacement Part Number | CM150TX-24S1-FT |
