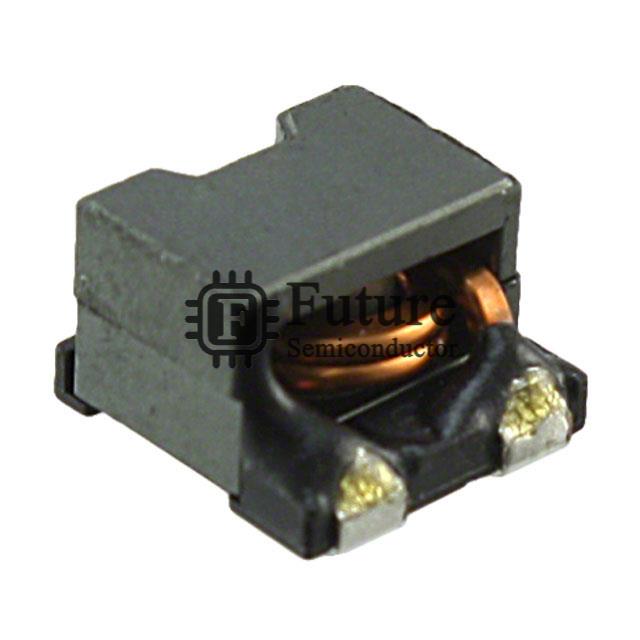

Sumida America Components Inc. CDEP85NP-R20MC-50
- MFG Part Number
- CDEP85NP-R20MC-50
- Available Quantity
- 89590 Pieces
- Reference Price
- USD 0.7812
- Our Price
- We have a big discount, please contact us
- Shipping Date
- We can ship out today
- Manufacturer
- Sumida America Components Inc.
- Brief Description
- CDEP85 FIXED Inductors 200NH 18A 2.5 MOHM SMD
- Lead Free Status / RoHS Status
- RoHS Compliant (Lead Free)
- Moisture Sensitivity Level (MSL)
- 1 (Unlimited)
- Date Code (D/C)
- New
- Product Category
- Fixed Inductors
- Stock Resource
- Franchised Distributor
- Warranty
- 360 days quality guarantee
- Datasheet
- CDEP85NP-R20MC-50.pdf
CDEP85NP-R20MC-50 Specifications
| Manufacturer Part Number | CDEP85NP-R20MC-50 |
|---|---|
| Future Part Number | FT-CDEP85NP-R20MC-50 |
| SPQ / MOQ | Contact Us |
| Packing Material | Reel/Tray/Tube/Others |
| Series | CDEP85 |
| CDEP85NP-R20MC-50 Status (Lifecycle) | In Stock |
| Part Status | Active |
| Type | Wirewound |
| Material - Core | Ferrite |
| Inductance | 200nH |
| Tolerance | ±20% |
| Current Rating | 18A |
| Current - Saturation | 32A |
| Shielding | Shielded |
| DC Resistance (DCR) | 2.5 mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.315" L x 0.315" W (8.00mm x 8.00mm) |
| Height - Seated (Max) | 0.217" (5.50mm) |
| Country of Origin | USA/JAPAN/MALAYSIA/MEXICO/CN |
| CDEP85NP-R20MC-50 Weight | Contact Us |
| Replacement Part Number | CDEP85NP-R20MC-50-FT |
