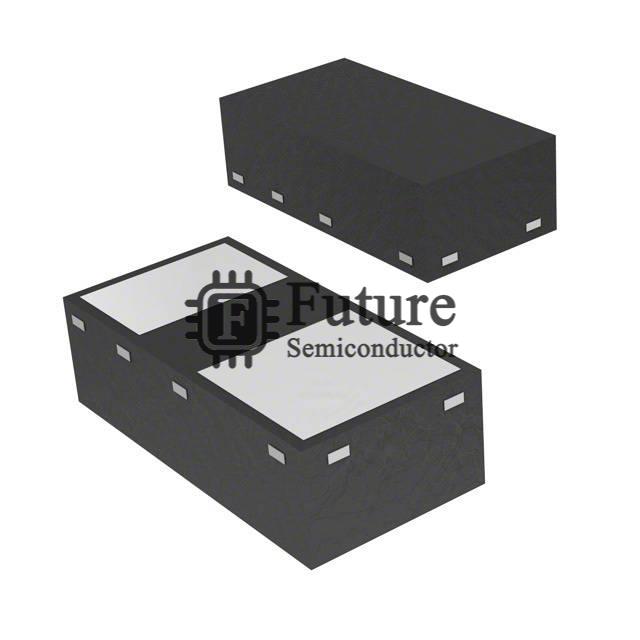

Toshiba Semiconductor and Storage CCS15S30,L3IDTF
- MFG Part Number
- CCS15S30,L3IDTF
- Available Quantity
- 55760 Pieces
- Reference Price
- USD 0
- Our Price
- We have a big discount, please contact us
- Shipping Date
- We can ship out today
- Manufacturer
- Toshiba Semiconductor and Storage
- Brief Description
- - DIODE SCHOTTKY 20V 1.5A CST2C
- Lead Free Status / RoHS Status
- RoHS Compliant (Lead Free)
- Moisture Sensitivity Level (MSL)
- 1 (Unlimited)
- Date Code (D/C)
- New
- Product Category
- Diodes - Rectifiers - Single
- Stock Resource
- Franchised Distributor
- Warranty
- 360 days quality guarantee
- Datasheet
- CCS15S30,L3IDTF.pdf
CCS15S30,L3IDTF Specifications
| Manufacturer Part Number | CCS15S30,L3IDTF |
|---|---|
| Future Part Number | FT-CCS15S30,L3IDTF |
| SPQ / MOQ | Contact Us |
| Packing Material | Reel/Tray/Tube/Others |
| Series | - |
| CCS15S30,L3IDTF Status (Lifecycle) | In Stock |
| Part Status | Discontinued at Future Semiconductor |
| Diode Type | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 20V |
| Current - Average Rectified (Io) | 1.5A |
| Voltage - Forward (Vf) (Max) @ If | 400mV @ 1A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | - |
| Current - Reverse Leakage @ Vr | 500µA @ 30V |
| Capacitance @ Vr, F | 200pF @ 0V, 1MHz |
| Mounting Type | Surface Mount |
| Package / Case | 0603 (1608 Metric) |
| Supplier Device Package | CST2C |
| Operating Temperature - Junction | 125°C (Max) |
| Country of Origin | USA/JAPAN/MALAYSIA/MEXICO/CN |
| CCS15S30,L3IDTF Weight | Contact Us |
| Replacement Part Number | CCS15S30,L3IDTF-FT |
