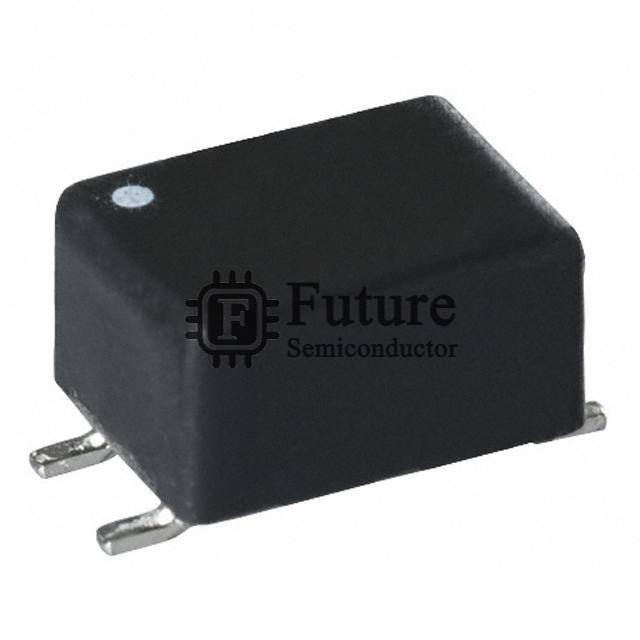

Laird-Signal Integrity Products CC2824B475R-10

Name: CC2824B475R-10
Brand: Laird-Signal Integrity Products
SKU: CC2824B475R-10
Price: 2.601864 USD
Availability: InStock
Rating: 4.7 (703 reviews)

MFG Part Number: CC2824B475R-10

Available Quantity: 70860 Pieces

Reference Price: USD 2.601864

Our Price: We have a big discount, please contact us

Shipping Date: We can ship out today

Manufacturer: Laird-Signal Integrity Products

Brief Description: CC CMC 4.7MH 400MA 2LN 12.3KOHM SMD

Lead Free Status / RoHS Status: RoHS Compliant (Lead Free)

Moisture Sensitivity Level (MSL): 1 (Unlimited)

Date Code (D/C): New

Product Category: Common Mode Chokes

Stock Resource: Franchised Distributor

Warranty: 360 days quality guarantee

Datasheet: CC2824B475R-10.pdf

Request Quotation for CC2824B475R-10

Company Name

Contact Person

Phone Number

Address

Email

Message

CC2824B475R-10 Specifications

Manufacturer Part Number	CC2824B475R-10
Future Part Number	FT-CC2824B475R-10
SPQ / MOQ	Contact Us
Packing Material	Reel/Tray/Tube/Others
Series	CC
CC2824B475R-10 Status (Lifecycle)	In Stock
Part Status	Active
Filter Type	Signal Line
Number of Lines	2
Impedance @ Frequency	12.3 kOhms @ 2MHz
Inductance @ Frequency	4.7mH @ 10kHz
Current Rating (Max)	400mA
DC Resistance (DCR) (Max)	1.3 Ohm
Voltage Rating - DC	80V
Voltage Rating - AC	42V
Operating Temperature	-40°C ~ 125°C
Ratings	-
Approvals	-
Features	-
Mounting Type	Surface Mount
Size / Dimension	0.354" L x 0.217" W (9.00mm x 5.50mm)
Height (Max)	0.193" (4.90mm)
Package / Case	Horizontal, 4 Flat Lead
Country of Origin	USA/JAPAN/MALAYSIA/MEXICO/CN
CC2824B475R-10 Weight	Contact Us
Replacement Part Number	CC2824B475R-10-FT
