ON Semiconductor CAT3643HV2-T2

Name: CAT3643HV2-T2
Brand: ON Semiconductor
SKU: CAT3643HV2-T2
Availability: InStock
Rating: 4.5 (800 reviews)

MFG Part Number: CAT3643HV2-T2

Available Quantity: 74360 Pieces

Reference Price: USD 0

Our Price: We have a big discount, please contact us

Shipping Date: We can ship out today

Manufacturer: ON Semiconductor

Brief Description: - IC LED DRIVER RGLTR DIM 12TDFN

Lead Free Status / RoHS Status: RoHS Compliant (Lead Free)

Moisture Sensitivity Level (MSL): 1 (Unlimited)

Date Code (D/C): New

Product Category: PMIC - LED Drivers

Stock Resource: Franchised Distributor

Warranty: 360 days quality guarantee

Datasheet: CAT3643HV2-T2.pdf

Request Quotation for CAT3643HV2-T2

Company Name

Contact Person

Phone Number

Address

Email

Message

CAT3643HV2-T2 Specifications

Manufacturer Part Number	CAT3643HV2-T2
Future Part Number	FT-CAT3643HV2-T2
SPQ / MOQ	Contact Us
Packing Material	Reel/Tray/Tube/Others
Series	-
CAT3643HV2-T2 Status (Lifecycle)	In Stock
Part Status	Obsolete
Type	DC DC Regulator
Topology	Switched Capacitor (Charge Pump)
Internal Switch(s)	Yes
Number of Outputs	3
Voltage - Supply (Min)	2.5V
Voltage - Supply (Max)	5.5V
Voltage - Output	7V
Current - Output / Channel	32mA
Frequency	1MHz ~ 1.3MHz
Dimming	Multi-Step
Applications	Backlight
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount

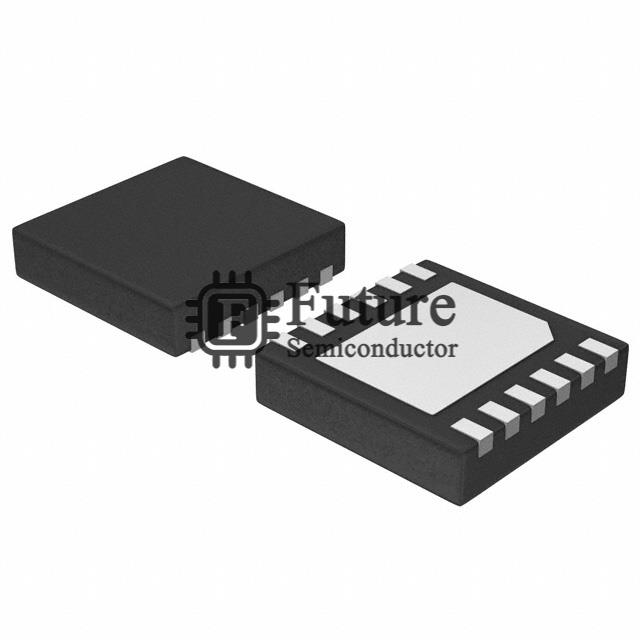

Package / Case	12-WFDFN Exposed Pad
Supplier Device Package	12-TDFN (3x3)
Country of Origin	USA/JAPAN/MALAYSIA/MEXICO/CN
CAT3643HV2-T2 Weight	Contact Us
Replacement Part Number	CAT3643HV2-T2-FT
