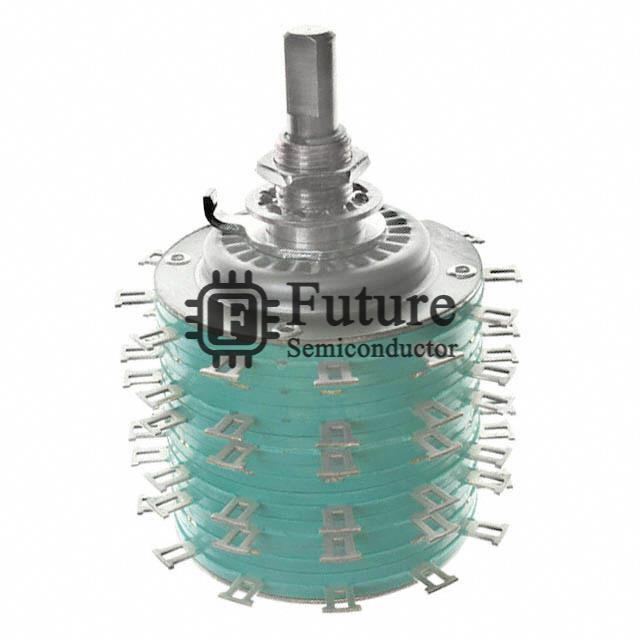

Electroswitch C7D0323N

Name: C7D0323N
Brand: Electroswitch
SKU: C7D0323N
Price: 77.592 USD
Availability: InStock
Rating: 4.7 (267 reviews)

MFG Part Number: C7D0323N

Available Quantity: 68090 Pieces

Reference Price: USD 77.592

Our Price: We have a big discount, please contact us

Shipping Date: We can ship out today

Manufacturer: Electroswitch

Brief Description: C7 SWITCH ROTARY 23POS 500MA 125V

Lead Free Status / RoHS Status: RoHS Compliant (Lead Free)

Moisture Sensitivity Level (MSL): 1 (Unlimited)

Date Code (D/C): New

Product Category: Rotary Switches

Stock Resource: Franchised Distributor

Warranty: 360 days quality guarantee

Datasheet: C7D0323N.pdf

Request Quotation for C7D0323N

Company Name

Contact Person

Phone Number

Address

Email

Message

C7D0323N Specifications

Manufacturer Part Number	C7D0323N
Future Part Number	FT-C7D0323N
SPQ / MOQ	Contact Us
Packing Material	Reel/Tray/Tube/Others
Series	C7
C7D0323N Status (Lifecycle)	In Stock
Part Status	Active
Number of Positions	23
Index Stops	Fixed
Number of Decks	3
Number of Poles per Deck	1
Circuit per Deck	SP23T
Contact Timing	Non-Shorting (BBM)
Current Rating	500mA (AC), 1A (DC)
Voltage Rating - AC	125V
Voltage Rating - DC	28V
Actuator Type	Flatted (6.35mm Dia)
Actuator Length	14.29mm
Angle of Throw	15°
Contact Material	Brass
Contact Finish	Silver
Mounting Type	Panel Mount
Termination Style	Solder Lug
Features	-
Depth Behind Panel	44.38mm
Country of Origin	USA/JAPAN/MALAYSIA/MEXICO/CN
C7D0323N Weight	Contact Us
Replacement Part Number	C7D0323N-FT
