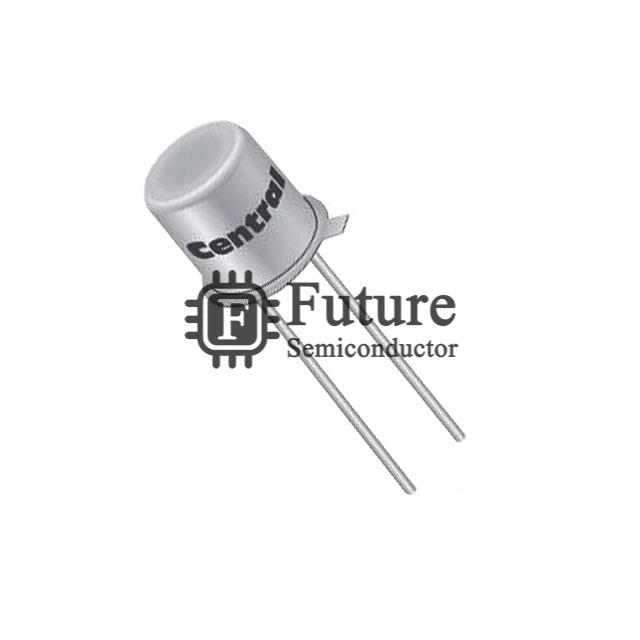

Central Semiconductor Corp BAV45

Name: BAV45
Brand: Central Semiconductor Corp
SKU: BAV45
Availability: InStock
Rating: 4.6 (59 reviews)

MFG Part Number: BAV45

Available Quantity: 39340 Pieces

Reference Price: USD 0

Our Price: We have a big discount, please contact us

Shipping Date: We can ship out today

Manufacturer: Central Semiconductor Corp

Brief Description: - DIODE GEN PURP 20V 50MA TO18

Lead Free Status / RoHS Status: RoHS Compliant (Lead Free)

Moisture Sensitivity Level (MSL): 1 (Unlimited)

Date Code (D/C): New

Product Category: Diodes - Rectifiers - Single

Stock Resource: Franchised Distributor

Warranty: 360 days quality guarantee

Datasheet: BAV45.pdf

BAV45 Specifications

Manufacturer Part Number	BAV45
Future Part Number	FT-BAV45
SPQ / MOQ	Contact Us
Packing Material	Reel/Tray/Tube/Others
Series	-
BAV45 Status (Lifecycle)	In Stock
Part Status	Obsolete
Diode Type	Standard
Voltage - DC Reverse (Vr) (Max)	20V
Current - Average Rectified (Io)	50mA
Voltage - Forward (Vf) (Max) @ If	1V @ 10mA
Speed	Small Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr)	600ns
Current - Reverse Leakage @ Vr	5pA @ 5V
Capacitance @ Vr, F	1.3pF @ 0V, 1MHz
Mounting Type	Through Hole
Package / Case	TO-18-2
Supplier Device Package	TO-18
Operating Temperature - Junction	-65°C ~ 125°C
Country of Origin	USA/JAPAN/MALAYSIA/MEXICO/CN
BAV45 Weight	Contact Us
Replacement Part Number	BAV45-FT
