Home / Products / Discrete Semiconductor Products / Diodes - Rectifiers - Arrays / BAV199DW-TP
Manufacturer Part Number | BAV199DW-TP |
---|---|
Future Part Number | FT-BAV199DW-TP |
SPQ / MOQ | Contact Us |
Packing Material | Reel/Tray/Tube/Others |
Series | - |
BAV199DW-TP Status (Lifecycle) | In Stock |
Part Status | Active |
Diode Configuration | 2 Pair Series Connection |
Diode Type | Standard |
Voltage - DC Reverse (Vr) (Max) | 85V |
Current - Average Rectified (Io) (per Diode) | 160mA (DC) |
Voltage - Forward (Vf) (Max) @ If | 1.25V @ 150mA |
Speed | Small Signal =< 200mA (Io), Any Speed |
Reverse Recovery Time (trr) | 3µs |
Current - Reverse Leakage @ Vr | 5nA @ 75V |
Operating Temperature - Junction | -65°C ~ 150°C |
Mounting Type | Surface Mount |

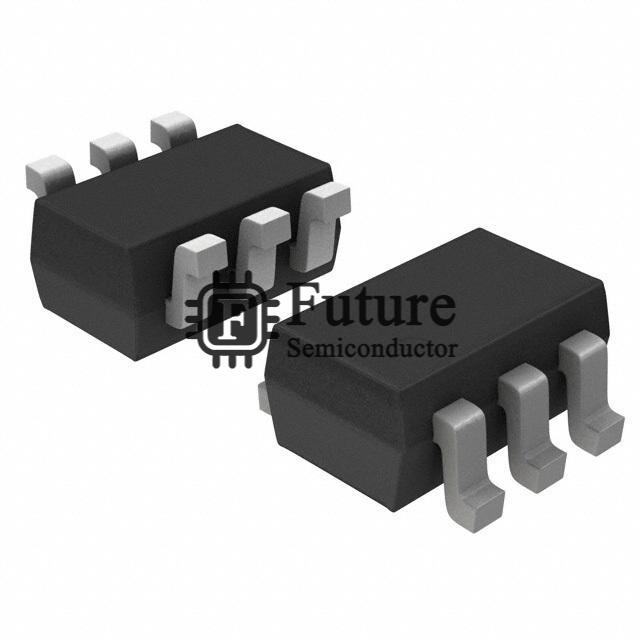

Package / Case | 6-TSSOP, SC-88, SOT-363 |
Supplier Device Package | SOT-363 |
Country of Origin | USA/JAPAN/MALAYSIA/MEXICO/CN |
BAV199DW-TP Weight | Contact Us |
Replacement Part Number | BAV199DW-TP-FT |
