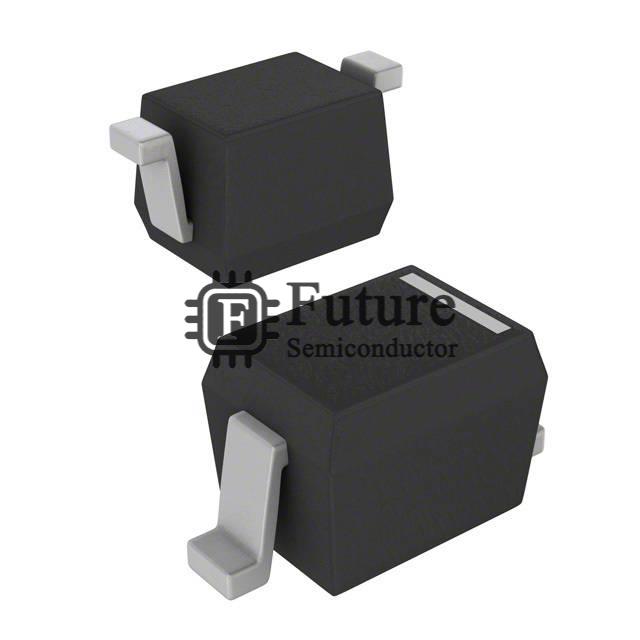

SMC Diode Solutions BAT54WSTR

Name: BAT54WSTR
Brand: SMC Diode Solutions
SKU: BAT54WSTR
Price: 0.018992 USD
Availability: InStock
Rating: 4.5 (440 reviews)

MFG Part Number: BAT54WSTR

Available Quantity: 95100 Pieces

Reference Price: USD 0.018992

Our Price: We have a big discount, please contact us

Shipping Date: We can ship out today

Manufacturer: SMC Diode Solutions

Brief Description: - DIODE SCHOTTKY 30V 200MA SOD323

Lead Free Status / RoHS Status: RoHS Compliant (Lead Free)

Moisture Sensitivity Level (MSL): 1 (Unlimited)

Date Code (D/C): New

Product Category: Diodes - Rectifiers - Single

Stock Resource: Franchised Distributor

Warranty: 360 days quality guarantee

Datasheet: BAT54WSTR.pdf

Request Quotation for BAT54WSTR

Company Name

Contact Person

Phone Number

Address

Email

Message

BAT54WSTR Specifications

Manufacturer Part Number	BAT54WSTR
Future Part Number	FT-BAT54WSTR
SPQ / MOQ	Contact Us
Packing Material	Reel/Tray/Tube/Others
Series	-
BAT54WSTR Status (Lifecycle)	In Stock
Part Status	Active
Diode Type	Schottky
Voltage - DC Reverse (Vr) (Max)	30V
Current - Average Rectified (Io)	200mA (DC)
Voltage - Forward (Vf) (Max) @ If	1V @ 100mA
Speed	Small Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr)	-
Current - Reverse Leakage @ Vr	2µA @ 25V
Capacitance @ Vr, F	10pF @ 1V, 1MHz
Mounting Type	Surface Mount
Package / Case	SC-76, SOD-323
Supplier Device Package	SOD-323
Operating Temperature - Junction	-55°C ~ 150°C
Country of Origin	USA/JAPAN/MALAYSIA/MEXICO/CN
BAT54WSTR Weight	Contact Us
Replacement Part Number	BAT54WSTR-FT
