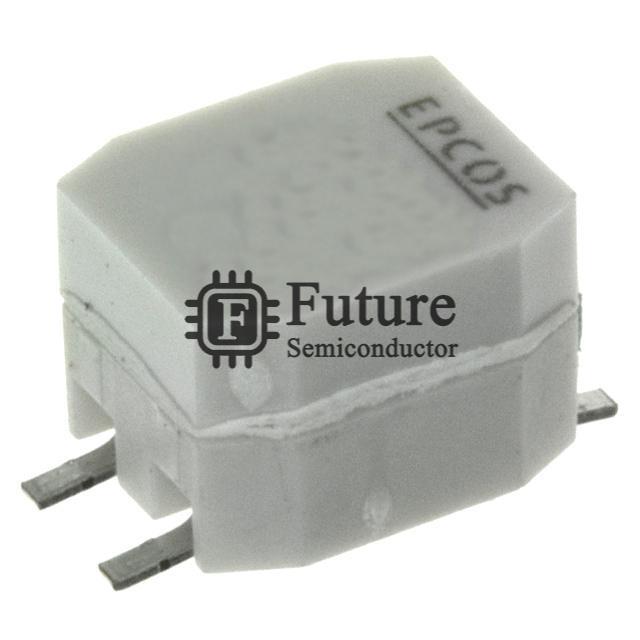

EPCOS (TDK) B82790S0513N201

Name: B82790S0513N201
Brand: EPCOS (TDK)
SKU: B82790S0513N201
Price: 1.2672 USD
Availability: InStock
Rating: 4.9 (484 reviews)

MFG Part Number: B82790S0513N201

Available Quantity: 93800 Pieces

Reference Price: USD 1.2672

Our Price: We have a big discount, please contact us

Shipping Date: We can ship out today

Manufacturer: EPCOS (TDK)

Brief Description: B82790 CMC 51UH 500MA 2LN SMD AEC-Q200

Lead Free Status / RoHS Status: RoHS Compliant (Lead Free)

Moisture Sensitivity Level (MSL): 1 (Unlimited)

Date Code (D/C): New

Product Category: Common Mode Chokes

Stock Resource: Franchised Distributor

Warranty: 360 days quality guarantee

Datasheet: B82790S0513N201.pdf

B82790S0513N201 Specifications

Manufacturer Part Number	B82790S0513N201
Future Part Number	FT-B82790S0513N201
SPQ / MOQ	Contact Us
Packing Material	Reel/Tray/Tube/Others
Series	B82790
B82790S0513N201 Status (Lifecycle)	In Stock
Part Status	Active
Filter Type	Signal Line
Number of Lines	2
Impedance @ Frequency	-
Inductance @ Frequency	51µH @ 100kHz
Current Rating (Max)	500mA
DC Resistance (DCR) (Max)	140 mOhm (Typ)
Voltage Rating - DC	80V
Voltage Rating - AC	42V
Operating Temperature	-40°C ~ 125°C
Ratings	AEC-Q200
Approvals	-
Features	-
Mounting Type	Surface Mount
Size / Dimension	0.280" L x 0.236" W (7.10mm x 6.00mm)
Height (Max)	0.205" (5.20mm)
Package / Case	Horizontal, 4 Gull Wing
Country of Origin	USA/JAPAN/MALAYSIA/MEXICO/CN
B82790S0513N201 Weight	Contact Us
Replacement Part Number	B82790S0513N201-FT
