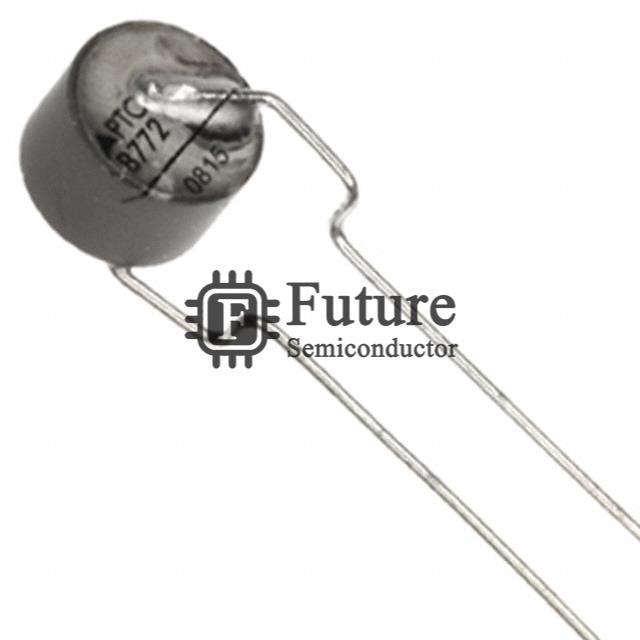

B59772B0120A070 Image

EPCOS (TDK) B59772B0120A070

MFG Part Number
B59772B0120A070
Available Quantity
17000 Pieces
Reference Price
USD 2.192
Our Price
We have a big discount, please contact us
Shipping Date
We can ship out today
Manufacturer
EPCOS (TDK)
Brief Description
- PTC RESET FUSE 420V RADIAL
Lead Free Status / RoHS Status
RoHS Compliant (Lead Free)
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Date Code (D/C)
New
Product Category
PTC Resettable Fuses
Stock Resource
Franchised Distributor
Warranty
360 days quality guarantee
Datasheet
B59772B0120A070.pdf
B59772B0120A070 Image

Request Quotation for B59772B0120A070

Company Name
Contact Person
Phone Number
Address
Email
Message

B59772B0120A070 Specifications

Manufacturer Part Number B59772B0120A070
Future Part Number FT-B59772B0120A070
SPQ / MOQ Contact Us
Packing Material Reel/Tray/Tube/Others
Series -
B59772B0120A070 Status (Lifecycle) In Stock
Part Status Active
Type Ceramic
Voltage - Max 420V
Current - Max 1.4A
Current - Hold (Ih) (Max) -
Current - Trip (It) 86mA
Time to Trip 3s
Resistance - Initial (Ri) (Min) -
Resistance - Post Trip (R1) (Max) -
Resistance - 25°C (Typ) 150 Ohms
Operating Temperature 0°C ~ 60°C
Ratings -
Mounting Type Through Hole
Package / Case Radial, Disc
Size / Dimension 0.335" Dia x 0.276" T (8.50mm x 7.00mm)
Height - Seated (Max) 0.197" (5.00mm)
Thickness (Max) -
Lead Spacing 0.197" (5.00mm)
Country of Origin USA/JAPAN/MALAYSIA/MEXICO/CN
B59772B0120A070 Weight Contact Us
Replacement Part Number B59772B0120A070-FT
