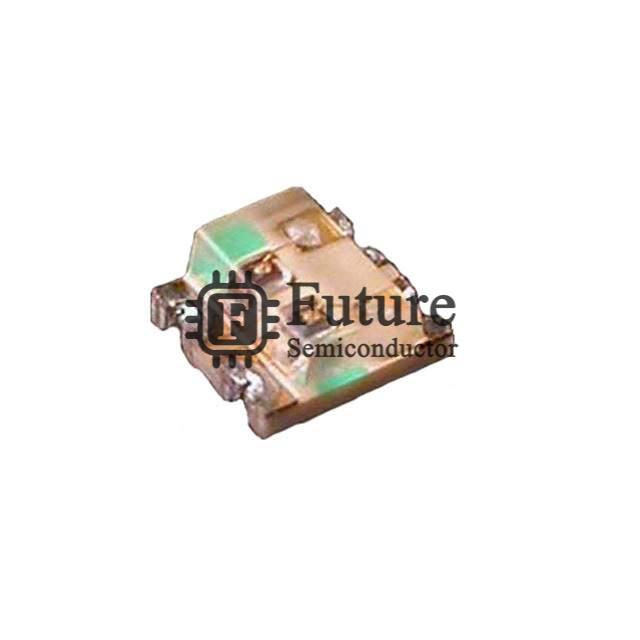

Kingbright APTB1615ESGC-F01

Name: APTB1615ESGC-F01
Brand: Kingbright
SKU: APTB1615ESGC-F01
Price: 0.0944 USD
Availability: InStock
Rating: 4.8 (262 reviews)

MFG Part Number: APTB1615ESGC-F01

Available Quantity: 84560 Pieces

Reference Price: USD 0.0944

Our Price: We have a big discount, please contact us

Shipping Date: We can ship out today

Manufacturer: Kingbright

Brief Description: - LED GREEN/RED CLEAR CHIP SMD

Lead Free Status / RoHS Status: RoHS Compliant (Lead Free)

Moisture Sensitivity Level (MSL): 1 (Unlimited)

Date Code (D/C): New

Product Category: LED Indication - Discrete

Stock Resource: Franchised Distributor

Warranty: 360 days quality guarantee

Datasheet: APTB1615ESGC-F01.pdf

Request Quotation for APTB1615ESGC-F01

Company Name

Contact Person

Phone Number

Address

Email

Message

APTB1615ESGC-F01 Specifications

Manufacturer Part Number	APTB1615ESGC-F01
Future Part Number	FT-APTB1615ESGC-F01
SPQ / MOQ	Contact Us
Packing Material	Reel/Tray/Tube/Others
Series	-
APTB1615ESGC-F01 Status (Lifecycle)	In Stock
Part Status	Active
Color	Green, Red
Configuration	Independent
Lens Color	Colorless
Lens Transparency	Clear
Millicandela Rating	12mcd Green, 7mcd Red
Lens Style	Rectangle with Flat Top
Lens Size	1.20mm x 1.50mm
Voltage - Forward (Vf) (Typ)	2.2V Green, 2V Red
Current - Test	20mA Green, 20mA Red
Viewing Angle	120°
Mounting Type	Surface Mount
Wavelength - Dominant	568nm Green, 617nm Red
Wavelength - Peak	565nm Green, 627nm Red
Features	-
Package / Case	0606 (1616 Metric)
Supplier Device Package	Chip LED
Size / Dimension	1.60mm L x 1.50mm W
Height (Max)	0.70mm
Country of Origin	USA/JAPAN/MALAYSIA/MEXICO/CN
APTB1615ESGC-F01 Weight	Contact Us
Replacement Part Number	APTB1615ESGC-F01-FT
