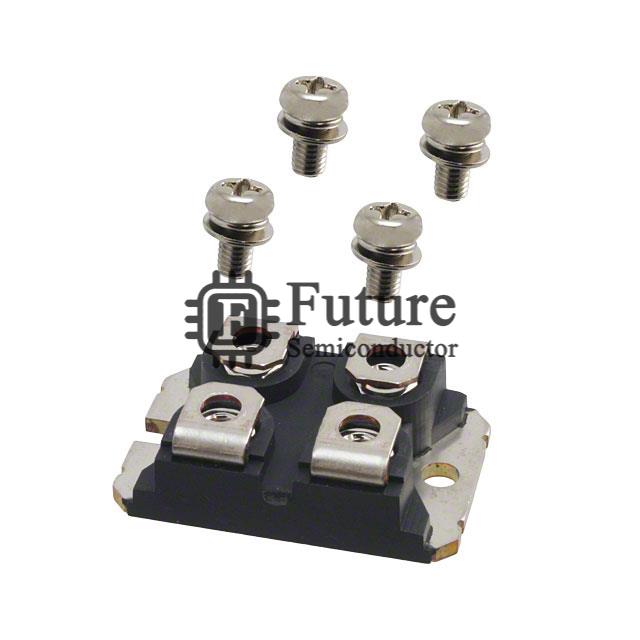

Microsemi Corporation APT40N60JCU3

Name: APT40N60JCU3
Brand: Microsemi Corporation
SKU: APT40N60JCU3
Price: 17.0572 USD
Availability: InStock
Rating: 4.9 (715 reviews)

MFG Part Number: APT40N60JCU3

Available Quantity: 46580 Pieces

Reference Price: USD 17.0572

Our Price: We have a big discount, please contact us

Shipping Date: We can ship out today

Manufacturer: Microsemi Corporation

Brief Description: - MOSFET N-CH 600V 40A SOT-227

Lead Free Status / RoHS Status: RoHS Compliant (Lead Free)

Moisture Sensitivity Level (MSL): 1 (Unlimited)

Date Code (D/C): New

Product Category: Transistors - FETs, MOSFETs - Single

Stock Resource: Franchised Distributor

Warranty: 360 days quality guarantee

Datasheet: APT40N60JCU3.pdf

APT40N60JCU3 Specifications

Manufacturer Part Number	APT40N60JCU3
Future Part Number	FT-APT40N60JCU3
SPQ / MOQ	Contact Us
Packing Material	Reel/Tray/Tube/Others
Series	-
APT40N60JCU3 Status (Lifecycle)	In Stock
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	600V
Current - Continuous Drain (Id) @ 25°C	40A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	70 mOhm @ 20A, 10V
Vgs(th) (Max) @ Id	3.9V @ 1mA
Gate Charge (Qg) (Max) @ Vgs	259nC @ 10V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	7015pF @ 25V
FET Feature	-
Power Dissipation (Max)	290W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Chassis Mount
Supplier Device Package	SOT-227
Package / Case	SOT-227-4, miniBLOC
Country of Origin	USA/JAPAN/MALAYSIA/MEXICO/CN
APT40N60JCU3 Weight	Contact Us
Replacement Part Number	APT40N60JCU3-FT
