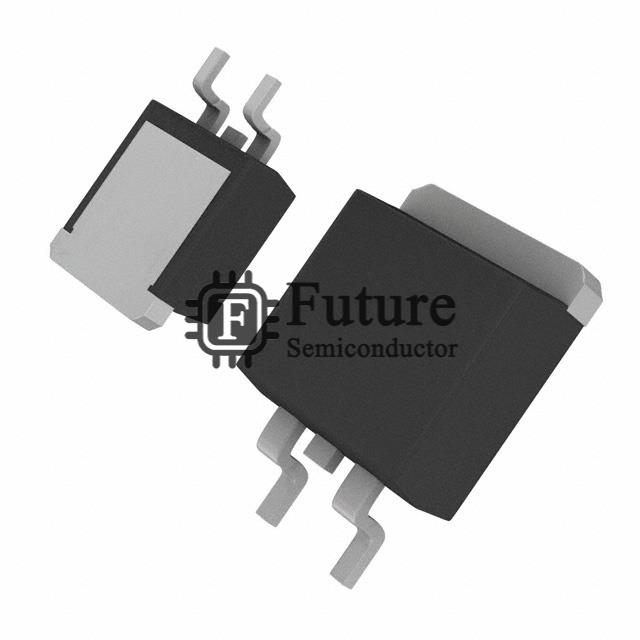

Microsemi Corporation APT14M100S

Name: APT14M100S
Brand: Microsemi Corporation
SKU: APT14M100S
Availability: InStock
Rating: 4.7 (765 reviews)

MFG Part Number: APT14M100S

Available Quantity: 63100 Pieces

Reference Price: USD 0

Our Price: We have a big discount, please contact us

Shipping Date: We can ship out today

Manufacturer: Microsemi Corporation

Brief Description: POWER MOS 8™ MOSFET N-CH 1000V 14A D3PAK

Lead Free Status / RoHS Status: RoHS Compliant (Lead Free)

Moisture Sensitivity Level (MSL): 1 (Unlimited)

Date Code (D/C): New

Product Category: Transistors - FETs, MOSFETs - Single

Stock Resource: Franchised Distributor

Warranty: 360 days quality guarantee

Datasheet: APT14M100S.pdf

Request Quotation for APT14M100S

Company Name

Contact Person

Phone Number

Address

Email

Message

APT14M100S Specifications

Manufacturer Part Number	APT14M100S
Future Part Number	FT-APT14M100S
SPQ / MOQ	Contact Us
Packing Material	Reel/Tray/Tube/Others
Series	POWER MOS 8™
APT14M100S Status (Lifecycle)	In Stock
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	1000V
Current - Continuous Drain (Id) @ 25°C	14A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	880 mOhm @ 7A, 10V
Vgs(th) (Max) @ Id	5V @ 1mA
Gate Charge (Qg) (Max) @ Vgs	120nC @ 10V
Vgs (Max)	±30V
Input Capacitance (Ciss) (Max) @ Vds	3965pF @ 25V
FET Feature	-
Power Dissipation (Max)	500W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	D3Pak
Package / Case	TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Country of Origin	USA/JAPAN/MALAYSIA/MEXICO/CN
APT14M100S Weight	Contact Us
Replacement Part Number	APT14M100S-FT
