Home / Products / Isolators / Optoisolators - Triac, SCR Output / APT1222

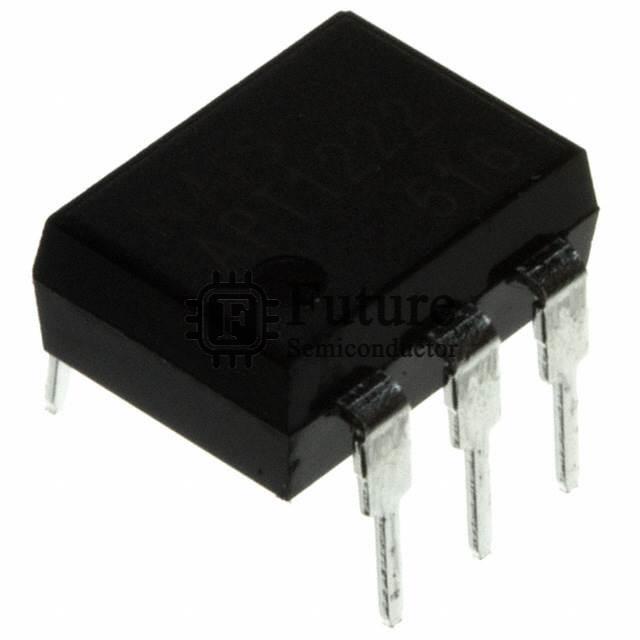

Panasonic Electric Works APT1222
- MFG Part Number
- APT1222
- Available Quantity
- 27920 Pieces
- Reference Price
- USD 1.68
- Our Price
- We have a big discount, please contact us
- Shipping Date
- We can ship out today
- Manufacturer
- Panasonic Electric Works
- Brief Description
- APT OPTOISOLATOR 5KV TRIAC 6DIP
- Lead Free Status / RoHS Status
- RoHS Compliant (Lead Free)
- Moisture Sensitivity Level (MSL)
- 1 (Unlimited)
- Date Code (D/C)
- New
- Product Category
- Optoisolators - Triac, SCR Output
- Stock Resource
- Franchised Distributor
- Warranty
- 360 days quality guarantee
- Datasheet
- APT1222.pdf
APT1222 Specifications
| Manufacturer Part Number | APT1222 |
|---|---|
| Future Part Number | FT-APT1222 |
| SPQ / MOQ | Contact Us |
| Packing Material | Reel/Tray/Tube/Others |
| Series | APT |
| APT1222 Status (Lifecycle) | In Stock |
| Part Status | Active |
| Output Type | Triac |
| Zero Crossing Circuit | No |
| Number of Channels | 1 |
| Voltage - Isolation | 5000Vrms |
| Voltage - Off State | 600V |
| Static dV/dt (Min) | 500V/µs |
| Current - LED Trigger (Ift) (Max) | 10mA |
| Current - On State (It (RMS)) (Max) | 100mA |
| Current - Hold (Ih) | 3.5mA |
| Turn On Time | 100µs (Max) |
| Voltage - Forward (Vf) (Typ) | 1.21V |
| Current - DC Forward (If) (Max) | 50mA |
| Operating Temperature | -40°C ~ 100°C |
| Mounting Type | Through Hole |
| Package / Case | 6-DIP (0.300", 7.62mm) |
| Supplier Device Package | 6-DIP |
| Approvals | cUR, VDE |
| Country of Origin | USA/JAPAN/MALAYSIA/MEXICO/CN |
| APT1222 Weight | Contact Us |
| Replacement Part Number | APT1222-FT |
