Diodes Incorporated AP3616M28-G1

Name: AP3616M28-G1
Brand: Diodes Incorporated
SKU: AP3616M28-G1
Availability: InStock
Rating: 4.7 (214 reviews)

MFG Part Number: AP3616M28-G1

Available Quantity: 76630 Pieces

Reference Price: USD 0

Our Price: We have a big discount, please contact us

Shipping Date: We can ship out today

Manufacturer: Diodes Incorporated

Brief Description: - IC LED DRVR LIN DIM 75MA 28HSOP

Lead Free Status / RoHS Status: RoHS Compliant (Lead Free)

Moisture Sensitivity Level (MSL): 1 (Unlimited)

Date Code (D/C): New

Product Category: PMIC - LED Drivers

Stock Resource: Franchised Distributor

Warranty: 360 days quality guarantee

Datasheet: AP3616M28-G1.pdf

Request Quotation for AP3616M28-G1

Company Name

Contact Person

Phone Number

Address

Email

Message

AP3616M28-G1 Specifications

Manufacturer Part Number	AP3616M28-G1
Future Part Number	FT-AP3616M28-G1
SPQ / MOQ	Contact Us
Packing Material	Reel/Tray/Tube/Others
Series	-
AP3616M28-G1 Status (Lifecycle)	In Stock
Part Status	Obsolete
Type	Linear
Topology	-
Internal Switch(s)	Yes
Number of Outputs	16
Voltage - Supply (Min)	4.2V
Voltage - Supply (Max)	27V
Voltage - Output	-
Current - Output / Channel	75mA
Frequency	-
Dimming	PWM
Applications	Backlight
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount

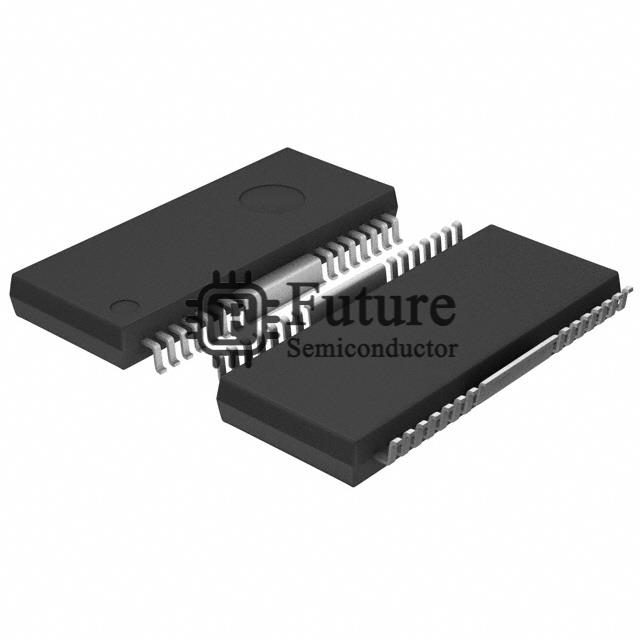

Package / Case	28-BSOP (0.295", 7.50mm Width) + 2 Heat Tabs
Supplier Device Package	28-HSOP
Country of Origin	USA/JAPAN/MALAYSIA/MEXICO/CN
AP3616M28-G1 Weight	Contact Us
Replacement Part Number	AP3616M28-G1-FT
