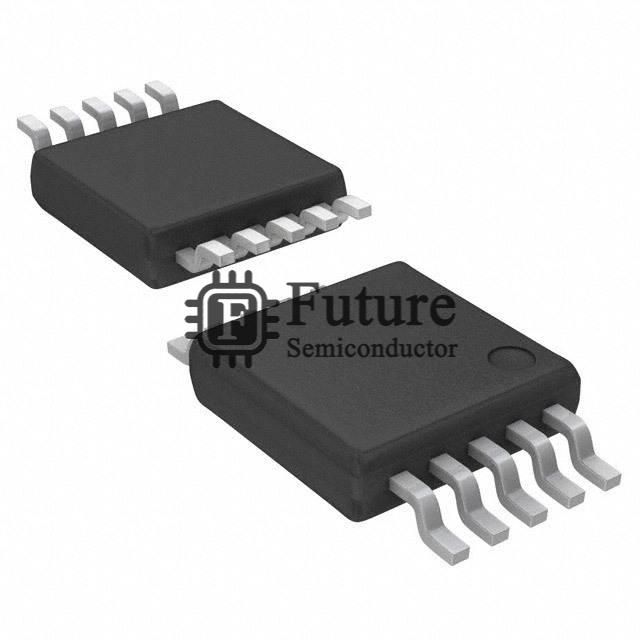

Diodes Incorporated AP3201AMHTR-G1
- MFG Part Number
- AP3201AMHTR-G1
- Available Quantity
- 32560 Pieces
- Reference Price
- USD 0
- Our Price
- We have a big discount, please contact us
- Shipping Date
- We can ship out today
- Manufacturer
- Diodes Incorporated
- Brief Description
- - IC REG BUCK ADJ 2A 10HMSOP
- Lead Free Status / RoHS Status
- RoHS Compliant (Lead Free)
- Moisture Sensitivity Level (MSL)
- 1 (Unlimited)
- Date Code (D/C)
- New
- Product Category
- PMIC - Voltage Regulators - DC DC Switching Regulators
- Stock Resource
- Franchised Distributor
- Warranty
- 360 days quality guarantee
- Datasheet
- AP3201AMHTR-G1.pdf
AP3201AMHTR-G1 Specifications
| Manufacturer Part Number | AP3201AMHTR-G1 |
|---|---|
| Future Part Number | FT-AP3201AMHTR-G1 |
| SPQ / MOQ | Contact Us |
| Packing Material | Reel/Tray/Tube/Others |
| Series | - |
| AP3201AMHTR-G1 Status (Lifecycle) | In Stock |
| Part Status | Obsolete |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Output Type | Adjustable |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 4.75V |
| Voltage - Input (Max) | 18V |
| Voltage - Output (Min/Fixed) | 0.92V |
| Voltage - Output (Max) | 16.2V |
| Current - Output | 2A |
| Frequency - Switching | 380kHz |
| Synchronous Rectifier | No |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) Exposed Pad |
| Supplier Device Package | 10-HMSOP |
| Country of Origin | USA/JAPAN/MALAYSIA/MEXICO/CN |
| AP3201AMHTR-G1 Weight | Contact Us |
| Replacement Part Number | AP3201AMHTR-G1-FT |
