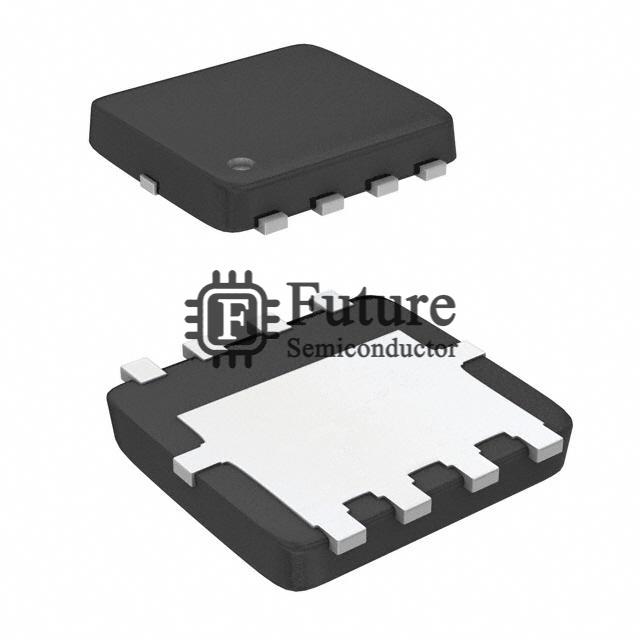

Alpha & Omega Semiconductor Inc. AON7702

Name: AON7702
Brand: Alpha & Omega Semiconductor Inc.
SKU: AON7702
Availability: InStock
Rating: 4.8 (792 reviews)

MFG Part Number: AON7702

Available Quantity: 52330 Pieces

Reference Price: USD 0

Our Price: We have a big discount, please contact us

Shipping Date: We can ship out today

Manufacturer: Alpha & Omega Semiconductor Inc.

Brief Description: SRFET™ MOSFET N-CH 30V 20A 8-DFN

Lead Free Status / RoHS Status: RoHS Compliant (Lead Free)

Moisture Sensitivity Level (MSL): 1 (Unlimited)

Date Code (D/C): New

Product Category: Transistors - FETs, MOSFETs - Single

Stock Resource: Franchised Distributor

Warranty: 360 days quality guarantee

Datasheet: AON7702.pdf

Request Quotation for AON7702

Company Name

Contact Person

Phone Number

Address

Email

Message

AON7702 Specifications

Manufacturer Part Number	AON7702
Future Part Number	FT-AON7702
SPQ / MOQ	Contact Us
Packing Material	Reel/Tray/Tube/Others
Series	SRFET™
AON7702 Status (Lifecycle)	In Stock
Part Status	Obsolete
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	30V
Current - Continuous Drain (Id) @ 25°C	13.5A (Ta), 36A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	10 mOhm @ 13.5A, 10V
Vgs(th) (Max) @ Id	3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	48nC @ 10V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	4250pF @ 15V
FET Feature	Schottky Diode (Body)
Power Dissipation (Max)	3.1W (Ta), 23W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	8-DFN (3x3)
Package / Case	8-PowerVDFN
Country of Origin	USA/JAPAN/MALAYSIA/MEXICO/CN
AON7702 Weight	Contact Us
Replacement Part Number	AON7702-FT
