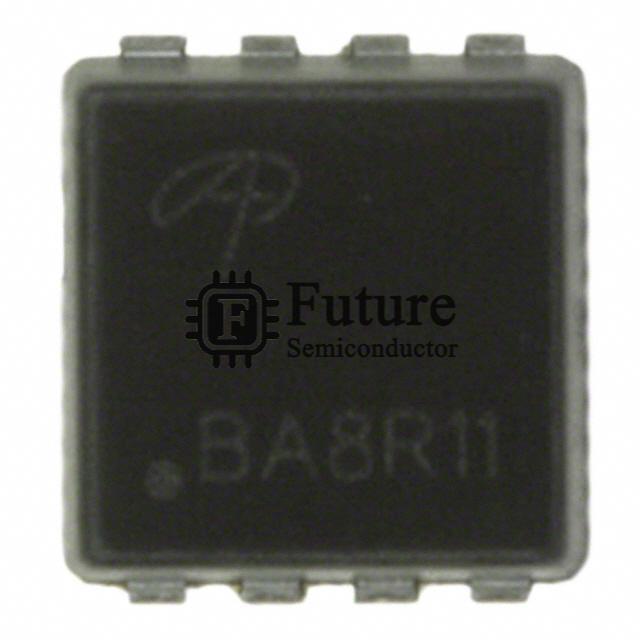

Alpha & Omega Semiconductor Inc. AON6506

Name: AON6506
Brand: Alpha & Omega Semiconductor Inc.
SKU: AON6506
Availability: InStock
Rating: 4.9 (414 reviews)

MFG Part Number: AON6506

Available Quantity: 41010 Pieces

Reference Price: USD 0

Our Price: We have a big discount, please contact us

Shipping Date: We can ship out today

Manufacturer: Alpha & Omega Semiconductor Inc.

Brief Description: - MOSFET N-CH 30V 36A DFN5X6

Lead Free Status / RoHS Status: RoHS Compliant (Lead Free)

Moisture Sensitivity Level (MSL): 1 (Unlimited)

Date Code (D/C): New

Product Category: Transistors - FETs, MOSFETs - Single

Stock Resource: Franchised Distributor

Warranty: 360 days quality guarantee

Datasheet: AON6506.pdf

Request Quotation for AON6506

Company Name

Contact Person

Phone Number

Address

Email

Message

AON6506 Specifications

Manufacturer Part Number	AON6506
Future Part Number	FT-AON6506
SPQ / MOQ	Contact Us
Packing Material	Reel/Tray/Tube/Others
Series	-
AON6506 Status (Lifecycle)	In Stock
Part Status	Obsolete
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	30V
Current - Continuous Drain (Id) @ 25°C	33A (Ta), 36A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	2.6 mOhm @ 20A, 10V
Vgs(th) (Max) @ Id	2.2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	60nC @ 10V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	2719pF @ 15V
FET Feature	-
Power Dissipation (Max)	4.2W (Ta), 83W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	8-DFN (5x6)
Package / Case	8-PowerSMD, Flat Leads
Country of Origin	USA/JAPAN/MALAYSIA/MEXICO/CN
AON6506 Weight	Contact Us
Replacement Part Number	AON6506-FT
