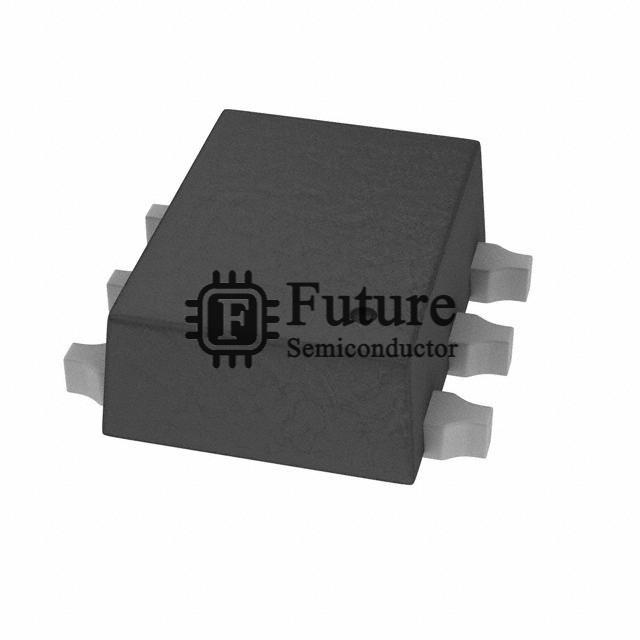

Analog Devices Inc. ADG859YRYZ-REEL7

Name: ADG859YRYZ-REEL7
Brand: Analog Devices Inc.
SKU: ADG859YRYZ-REEL7
Availability: InStock
Rating: 4.9 (23 reviews)

MFG Part Number: ADG859YRYZ-REEL7

Available Quantity: 99500 Pieces

Reference Price: USD 0

Our Price: We have a big discount, please contact us

Shipping Date: We can ship out today

Manufacturer: Analog Devices Inc.

Brief Description: - IC SWITCH SPDT SOT66

Lead Free Status / RoHS Status: RoHS Compliant (Lead Free)

Moisture Sensitivity Level (MSL): 1 (Unlimited)

Date Code (D/C): New

Product Category: Interface - Analog Switches, Multiplexers, Demultiplexers

Stock Resource: Franchised Distributor

Warranty: 360 days quality guarantee

Datasheet: ADG859YRYZ-REEL7.pdf

Request Quotation for ADG859YRYZ-REEL7

Company Name

Contact Person

Phone Number

Address

Email

Message

ADG859YRYZ-REEL7 Specifications

Manufacturer Part Number	ADG859YRYZ-REEL7
Future Part Number	FT-ADG859YRYZ-REEL7
SPQ / MOQ	Contact Us
Packing Material	Reel/Tray/Tube/Others
Series	-
ADG859YRYZ-REEL7 Status (Lifecycle)	In Stock
Part Status	Obsolete
Switch Circuit	SPDT
Multiplexer/Demultiplexer Circuit	2:1
Number of Circuits	1
On-State Resistance (Max)	2.1 Ohm
Channel-to-Channel Matching (ΔRon)	10 mOhm
Voltage - Supply, Single (V+)	1.8V ~ 5.5V
Voltage - Supply, Dual (V±)	-
Switch Time (Ton, Toff) (Max)	10ns, 6ns
-3db Bandwidth	125MHz
Charge Injection	13pC
Channel Capacitance (CS(off), CD(off))	18pF
Current - Leakage (IS(off)) (Max)	20pA (Typ)
Crosstalk	-78dB @ 100kHz
Operating Temperature	-40°C ~ 125°C (TA)
Package / Case	SOT-66
Supplier Device Package	SOT-66
Country of Origin	USA/JAPAN/MALAYSIA/MEXICO/CN
ADG859YRYZ-REEL7 Weight	Contact Us
Replacement Part Number	ADG859YRYZ-REEL7-FT
