Analog Devices Inc. ADG787-BCB-500RL7

Name: ADG787-BCB-500RL7
Brand: Analog Devices Inc.
SKU: ADG787-BCB-500RL7
Availability: InStock
Rating: 4.6 (627 reviews)

MFG Part Number: ADG787-BCB-500RL7

Available Quantity: 97430 Pieces

Reference Price: USD 0

Our Price: We have a big discount, please contact us

Shipping Date: We can ship out today

Manufacturer: Analog Devices Inc.

Brief Description: - IC MUX/DEMUX DUAL 2X1 10WLCSP

Lead Free Status / RoHS Status: RoHS Compliant (Lead Free)

Moisture Sensitivity Level (MSL): 1 (Unlimited)

Date Code (D/C): New

Product Category: Interface - Analog Switches, Multiplexers, Demultiplexers

Stock Resource: Franchised Distributor

Warranty: 360 days quality guarantee

Datasheet: ADG787-BCB-500RL7.pdf

Request Quotation for ADG787-BCB-500RL7

Company Name

Contact Person

Phone Number

Address

Email

Message

ADG787-BCB-500RL7 Specifications

Manufacturer Part Number	ADG787-BCB-500RL7
Future Part Number	FT-ADG787-BCB-500RL7
SPQ / MOQ	Contact Us
Packing Material	Reel/Tray/Tube/Others
Series	-
ADG787-BCB-500RL7 Status (Lifecycle)	In Stock
Part Status	Obsolete
Switch Circuit	SPDT
Multiplexer/Demultiplexer Circuit	2:1
Number of Circuits	2
On-State Resistance (Max)	3 Ohm
Channel-to-Channel Matching (ΔRon)	20 mOhm
Voltage - Supply, Single (V+)	1.8V ~ 5.5V
Voltage - Supply, Dual (V±)	-
Switch Time (Ton, Toff) (Max)	19ns, 5ns
-3db Bandwidth	145MHz
Charge Injection	14pC
Channel Capacitance (CS(off), CD(off))	16pF
Current - Leakage (IS(off)) (Max)	50pA (Typ)
Crosstalk	-110dB @ 1MHz
Operating Temperature	-25°C ~ 85°C (TA)

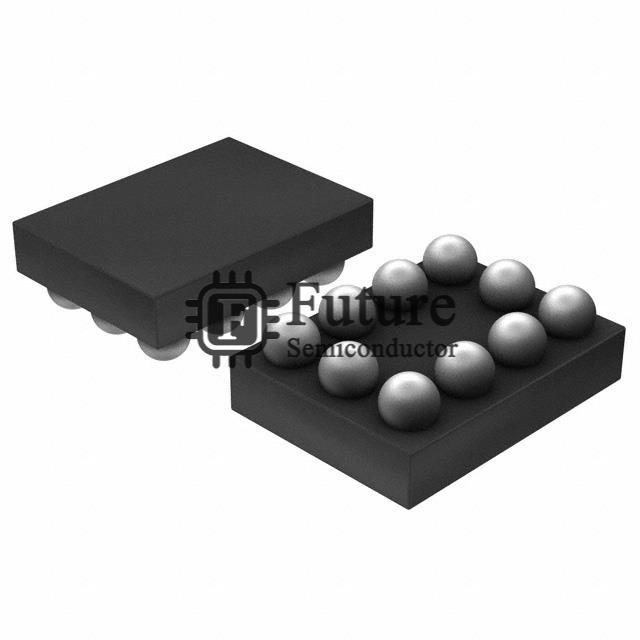

Package / Case	10-UFBGA, WLCSP
Supplier Device Package	10-WLCSP (2.0x1.5)
Country of Origin	USA/JAPAN/MALAYSIA/MEXICO/CN
ADG787-BCB-500RL7 Weight	Contact Us
Replacement Part Number	ADG787-BCB-500RL7-FT
