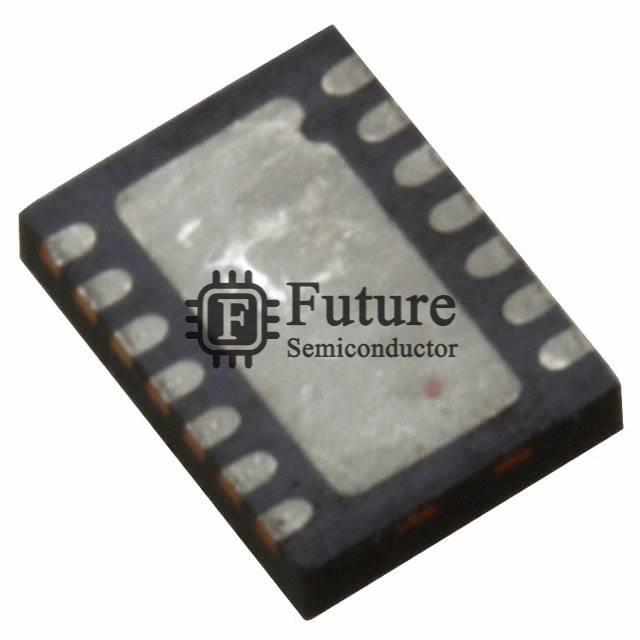

Analog Devices Inc. ADD5207ACPZ-RL

Name: ADD5207ACPZ-RL
Brand: Analog Devices Inc.
SKU: ADD5207ACPZ-RL
Availability: InStock
Rating: 4.6 (633 reviews)

MFG Part Number: ADD5207ACPZ-RL

Available Quantity: 51030 Pieces

Reference Price: USD 0

Our Price: We have a big discount, please contact us

Shipping Date: We can ship out today

Manufacturer: Analog Devices Inc.

Brief Description: - IC LED DRIVER RGLTR DIM 14LFCSP

Lead Free Status / RoHS Status: RoHS Compliant (Lead Free)

Moisture Sensitivity Level (MSL): 1 (Unlimited)

Date Code (D/C): New

Product Category: PMIC - LED Drivers

Stock Resource: Franchised Distributor

Warranty: 360 days quality guarantee

Datasheet: ADD5207ACPZ-RL.pdf

Request Quotation for ADD5207ACPZ-RL

Company Name

Contact Person

Phone Number

Address

Email

Message

ADD5207ACPZ-RL Specifications

Manufacturer Part Number	ADD5207ACPZ-RL
Future Part Number	FT-ADD5207ACPZ-RL
SPQ / MOQ	Contact Us
Packing Material	Reel/Tray/Tube/Others
Series	-
ADD5207ACPZ-RL Status (Lifecycle)	In Stock
Part Status	Active
Type	DC DC Regulator
Topology	Step-Up (Boost)
Internal Switch(s)	Yes
Number of Outputs	4
Voltage - Supply (Min)	6V
Voltage - Supply (Max)	21V
Voltage - Output	36V
Current - Output / Channel	25mA
Frequency	1MHz
Dimming	PWM
Applications	Backlight
Operating Temperature	-25°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	14-WFDFN Exposed Pad, CSP
Supplier Device Package	14-LFCSP-WD (4x3)
Country of Origin	USA/JAPAN/MALAYSIA/MEXICO/CN
ADD5207ACPZ-RL Weight	Contact Us
Replacement Part Number	ADD5207ACPZ-RL-FT
