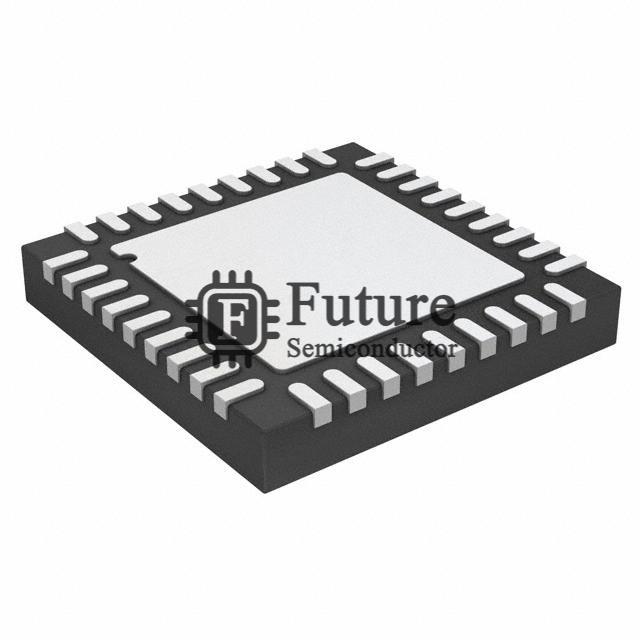

Analog Devices Inc. AD7292BCPZ

Name: AD7292BCPZ
Brand: Analog Devices Inc.
SKU: AD7292BCPZ
Price: 7.712 USD
Availability: InStock
Rating: 4.7 (706 reviews)

MFG Part Number: AD7292BCPZ

Available Quantity: 65890 Pieces

Reference Price: USD 7.712

Our Price: We have a big discount, please contact us

Shipping Date: We can ship out today

Manufacturer: Analog Devices Inc.

Brief Description: - IC ADC 10BIT SPI/SRL 36-LFCSP

Lead Free Status / RoHS Status: RoHS Compliant (Lead Free)

Moisture Sensitivity Level (MSL): 1 (Unlimited)

Date Code (D/C): New

Product Category: Data Acquisition - Analog to Digital Converters (ADC)

Stock Resource: Franchised Distributor

Warranty: 360 days quality guarantee

Datasheet: AD7292BCPZ.pdf

AD7292BCPZ Specifications

Manufacturer Part Number	AD7292BCPZ
Future Part Number	FT-AD7292BCPZ
SPQ / MOQ	Contact Us
Packing Material	Reel/Tray/Tube/Others
Series	-
AD7292BCPZ Status (Lifecycle)	In Stock
Part Status	Active
Number of Bits	10
Sampling Rate (Per Second)	625k
Number of Inputs	1, 8
Input Type	Differential, Single Ended
Data Interface	SPI
Configuration	MUX-S/H-ADC
Ratio - S/H:ADC	1:1
Number of A/D Converters	1
Architecture	SAR
Reference Type	External, Internal
Voltage - Supply, Analog	5V
Voltage - Supply, Digital	1.8V ~ 5.25V
Features	Temperature Sensor
Operating Temperature	-40°C ~ 125°C
Package / Case	36-WFQFN Exposed Pad, CSP
Supplier Device Package	36-LFCSP-WQ (6x6)
Base Part Number	Surface Mount
Country of Origin	USA/JAPAN/MALAYSIA/MEXICO/CN
AD7292BCPZ Weight	Contact Us
Replacement Part Number	AD7292BCPZ-FT
