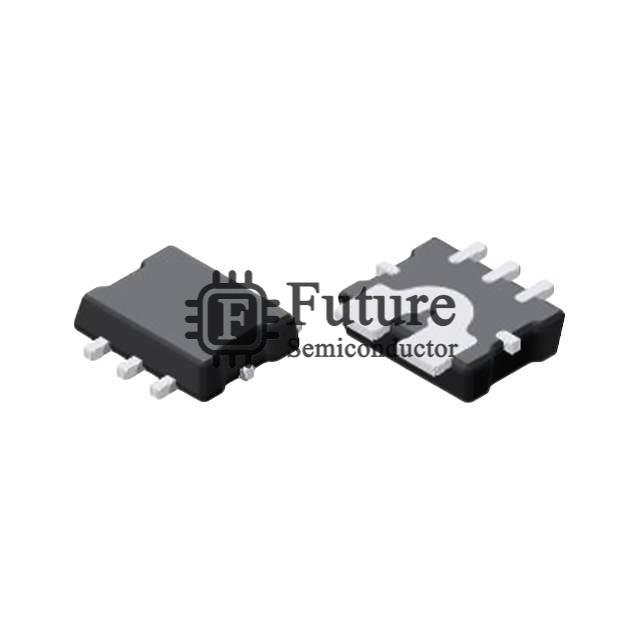

Allegro MicroSystems, LLC ACS780LLRTR-100B-T
- MFG Part Number
- ACS780LLRTR-100B-T
- Available Quantity
- 72880 Pieces
- Reference Price
- USD 1.65816
- Our Price
- We have a big discount, please contact us
- Shipping Date
- We can ship out today
- Manufacturer
- Allegro MicroSystems, LLC
- Brief Description
- Automotive, AEC-Q100 HIGH-PRECISION LINEAR HALL-EFFEC
- Lead Free Status / RoHS Status
- RoHS Compliant (Lead Free)
- Moisture Sensitivity Level (MSL)
- 1 (Unlimited)
- Date Code (D/C)
- New
- Product Category
- Current Transducers
- Stock Resource
- Franchised Distributor
- Warranty
- 360 days quality guarantee
- Datasheet
- ACS780LLRTR-100B-T.pdf
ACS780LLRTR-100B-T Specifications
| Manufacturer Part Number | ACS780LLRTR-100B-T |
|---|---|
| Future Part Number | FT-ACS780LLRTR-100B-T |
| SPQ / MOQ | Contact Us |
| Packing Material | Reel/Tray/Tube/Others |
| Series | Automotive, AEC-Q100 |
| ACS780LLRTR-100B-T Status (Lifecycle) | In Stock |
| Part Status | Active |
| For Measuring | AC/DC |
| Sensor Type | Hall Effect, Differential |
| Current - Sensing | 100A |
| Number of Channels | 1 |
| Output | Ratiometric, Voltage |
| Sensitivity | 20mV/A |
| Frequency | DC ~ 120kHz |
| Linearity | ±1% |
| Accuracy | ±1.5% |
| Voltage - Supply | 4.5V ~ 5.5V |
| Response Time | 3.6µs |
| Current - Supply (Max) | 15mA |
| Operating Temperature | -40°C ~ 150°C |
| Polarization | Bidirectional |
| Mounting Type | Surface Mount |
| Package / Case | 7-PowerSMD Module |
| Supplier Device Package | 7-PSOF |
| Country of Origin | USA/JAPAN/MALAYSIA/MEXICO/CN |
| ACS780LLRTR-100B-T Weight | Contact Us |
| Replacement Part Number | ACS780LLRTR-100B-T-FT |
